I.562.25.15.D.1 slewing bearing,I.562.25.15.D.1 slewing ring,I.562.25.15.D.1 bearing

Large Image : I.562.25.15.D.1 slewing bearing,I.562.25.15.D.1 slewing ring,I.562.25.15.D.1 bearing

Product Details:

Place of Origin:	I.562.25.15.D.1
Brand Name:	JHB or OEM+I.562.25.15.D.1
Certification:	I.562.25.15.D.1 Quality certificate
Model Number:	I.562.25.15.D.1

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 20- 30 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	With Seal
Number Of Row:	Single Row

Name:I.562.25.15.D.1 bearing is the TG Series I.25.D. product., I.562.25.15.D.1 slewing bearing, I.562.25.15.D.1 slewing ring, I.562.25.15.D.1 turntable bearing, I.562.25.15.D.1 slewing bearing supplier

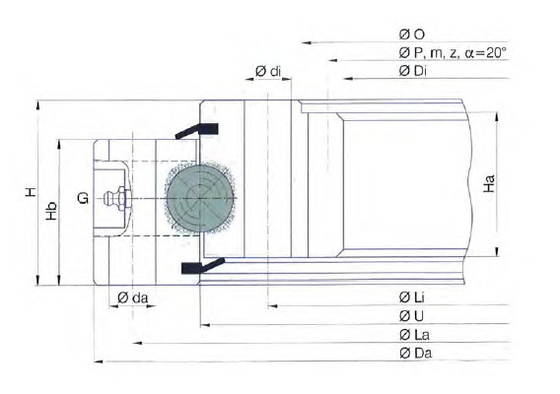

I.562.25.15.D.1 four point contact ball slewing bearing with internal gear teeth technology parameter as follow:

Description	I.562.25.15.D.1 slewing bearing
Outside and Inside diameter tolerances	in accordance with ISO2768-m
Dimension(ODXIDXH)	560x385x60 mm
Outer diameter(OD)	560mm
Inner diameter(ID)	385mm
Width/Height/(H)	60mm
Fz nor	18KN
Fz max	36 KN
Gear data	With internal gear/teeth
Gear teech P	396mm
Gear teeth m	6
Gear teeth Z	66
weight	41 kgs
Material	42CrMo,42CrMo4V,50Mn
Rolling	ball
Seal	Double lip seal
Package	Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case.
The delivery time	20-30 days
Service	Technology communicate with engineer, and if you need the assembly drawing,we can send to you
Advantage	1. High precision: P5,P6,P0 2. Low noise 3. Long serive life 4. short delivery time 5. OEM service provided 6. Processing with supplied drawings
Contact us	www.chinajhbearing.com www.lyjhbearing.com E-mail: lyjh@lyjhbearing.com sales@lyjhbearing.com MSN:lyjhbearing@hotmail.com Skype:million556

Shipping term:TNT,FEDEX,DHL UPS Express or your required.

I.562.25.15.D.1 slewing bearing,I.562.25.15.D.1 slewing ring,I.562.25.15.D.1 bearing

The bearing I.535.22.00.D.3.V Reference pictures as following:

I.562.25.15.D.1 slewing bearing,I.562.25.15.D.1 slewing ring,I.562.25.15.D.1 bearing

JinHang Precision Bearing mainly export high quantities I.562.25.15.D.1 Slewing Bearing and relative products, we had owned advanced CNC Machine to manufacture them.From the forging material to Bearing assembly ,we had performance ISO Quality system. Every process, we had make the note and keep them. Also, our engineer can supply the technolgoy communication and guide. If you want to know the I.562.25.15.D.1 Slewing ring more, Please contact us as follow,Thanks for your trust!
