Light structure slewing ball bearing RK6-29P1Z 33.39*24.97*2.2 in stock
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P0 P6 P5 | Seals Type: | Double Sealed |
|---|---|---|---|
| Material: | 42CrMo,50Mn | Teeth: | Without Teeth |
| Rolling Element: | Ball | Lubrication: | Grease Oil Hole |
| Load: | Heavy Load | Heat Treatment: | Q+T |

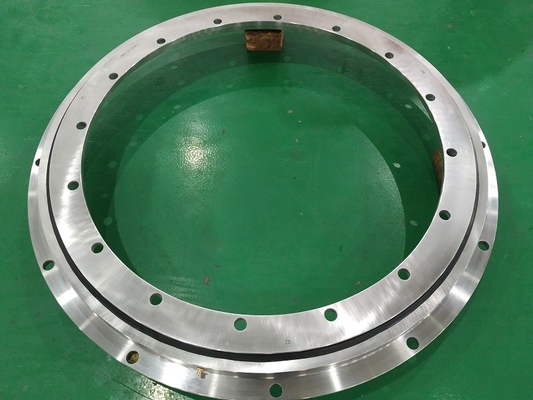

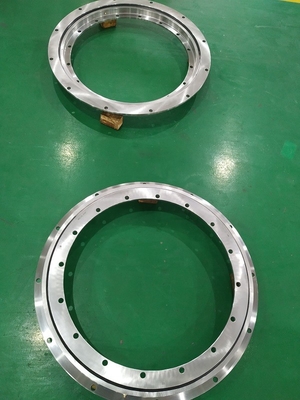

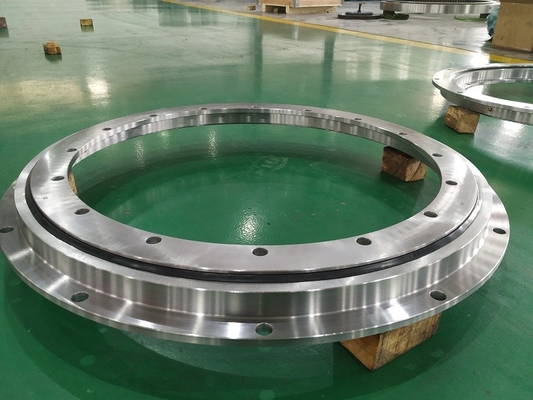

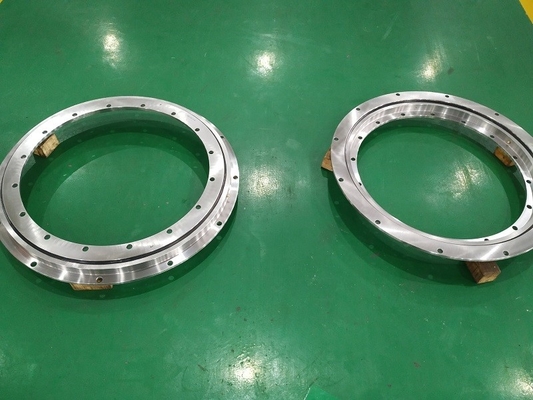

Light structure slewing ball bearing RK6-29P1Z 33.39*24.97*2.2 in stock
Bearings must RK6-29P1Z only be fixed using the screw types specified.
It is essential that the information in the following sources is followed:this catalogue
the technical proposal.
The bearing manufacture code:rk6-29p1z
The bearing structure:single row four point contact ball bearing with doulbe flange
The bearing full size : 33.39*24.97*2.2 inch size
The bearing outer diameter:33.39 inch size
The bearing inner diameter:24.97 inch size
The bearing total height:2.2 inch size
The bearing ring material:42CrMo,50Mn available
Seal:sealed on both side
After initial operation, the temperature in the bearing can increase in the case of grease lubrication, for example, until the grease is evenly distributed in the bearing arrangement
Flange:two rings with flange
Ball material:GCr15 steel
HS Code:8482100090
Perspiration from handling leads to corrosion. Hands must be kept clean and dry; protective gloves should be worn if necessary.
MOQ:2 PCS
Package: wooden case
Teeth:without teeth
