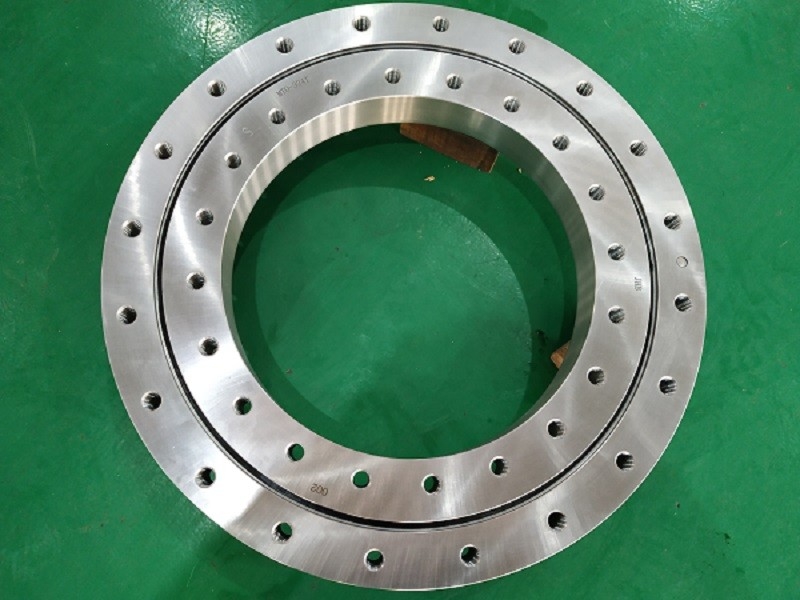

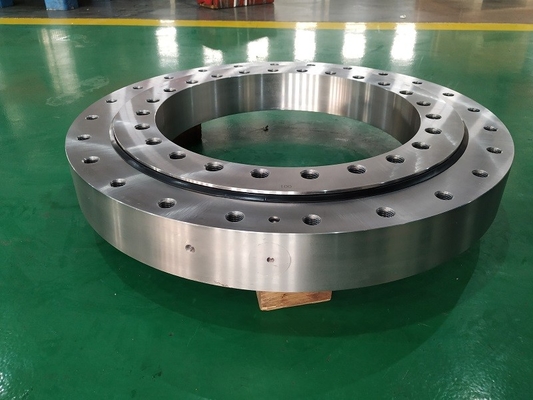

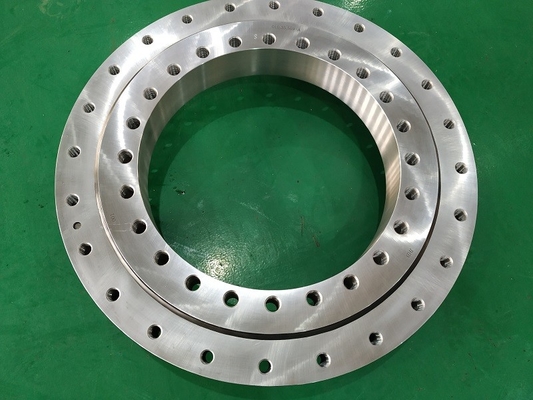

Four Point Contact Ball Bearings MTO-324T Quenching Heat Treatment
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Lubrication: | Oil Lubrication | Materical: | 50Mn 42CrMo |
|---|---|---|---|
| Heat Treatment: | HB240-280 | Tooth Surface: | HRC55-60 |
| Clearance: | Axial Clerance | Finished Time: | 40 Days |
Four point contact ball bearings MTO-324T quenching heat treatment
How to order the bearing MTO-324T?First we will need to know the bearing working condition,lubrication, working speed and load.We will also offer the technology advice and size data for you. After approving by you, we will manufacture them based on the drawing. All the process will be inspected.

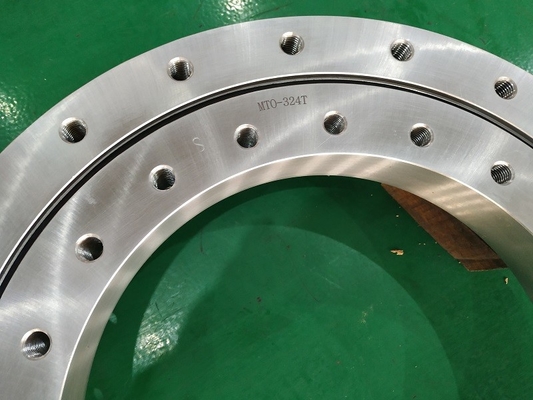

Bearing factory code :MTO-324T
Structure:Four point contact ball slewing bearing
Bearing application:Manipulators,Jib cranes,Lift-assist devices,Work positions
Boundary Size:520.3x323.85x52.4mm
Outer dia metric size:520.3 mm(20.486 inch size)
Inner dia metric size:323.85mm(12.77inch size)
Height:52.4 mm(2.375 inch size)
Weight:47 Kgs
The ball bearing material :42CrMo,50Mn or stainless steel available
Outer ring hole distribute:10pcs,equally distribute space
Inner ring hole distribute:10pcs ,equal distribute space
The heat treatment :HRC55-60
Rolling elements:ball
Delivery time:45 days
Axial Clearance :0.04-0.2
Shipping term:By sea or by air
Package: wooden case
Lubrication type:Grease lubrication
Service:Offer assembly drawing and technology knowledge
Slewing bearing is one of our main products.
1. four point contact ball slewing bearing (no gear, external gear, internal gear);
2. two row ball slewing bearing (no gear, external gear, internal gear);
3. crossed cylindrical roller slewing bearing;(no gear, external gear, internal gear);
4. three row cylindrical roller slewing bearing;(no gear, external gear, internal gear);
5. crossed tapered roller slewing bearing; (no gear, external gear, internal gear);
6. ball and roller combined slewing bearing.(no gear, external gear, internal gear);
