Precision Rating: | P0 P6 P5 | Seals Type: | Double Sealed |
---|---|---|---|
Material: | 42CrMo,50Mn | Teeth: | Internal Teeth |
Rolling Element: | Ball | Lubrication: | Grease Oil Hole |
Load: | Heavy Load | Heat Treatment: | Q+T |

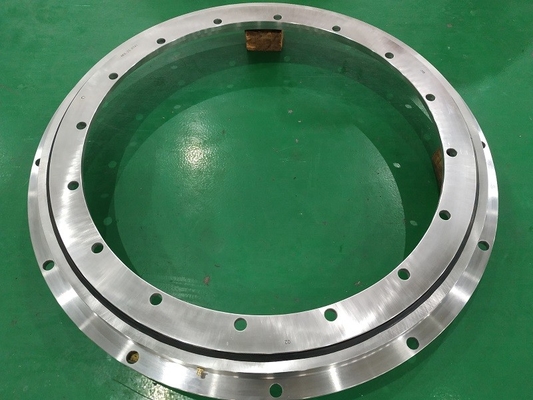

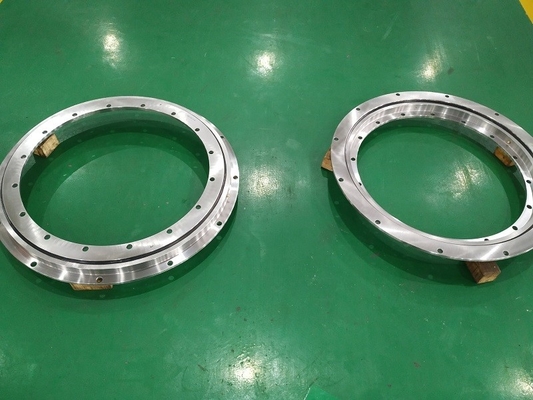

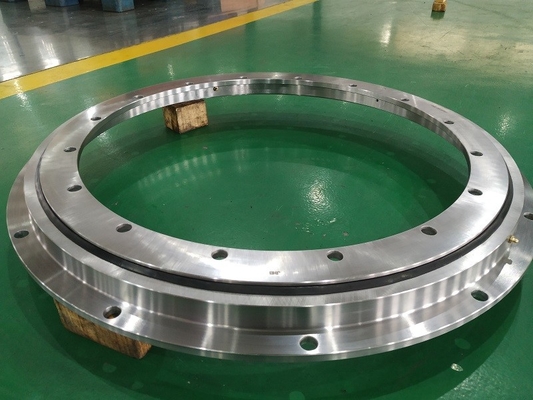

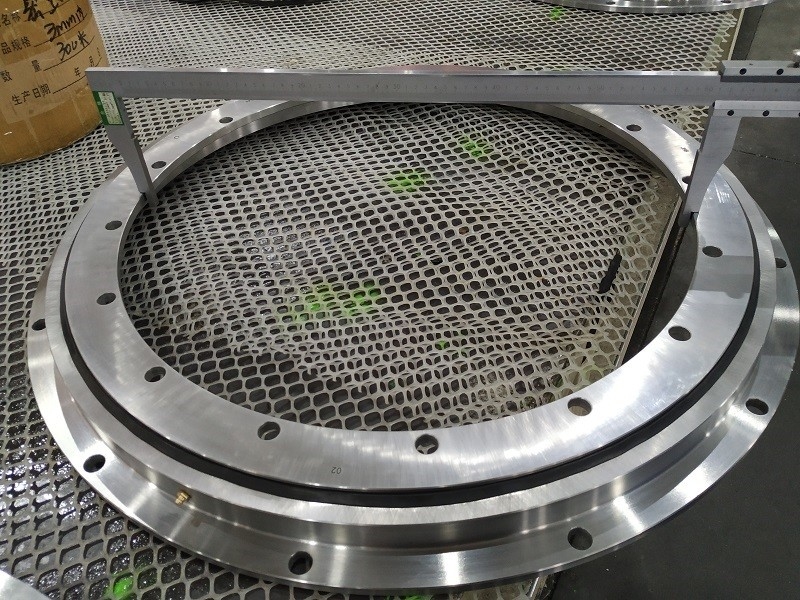

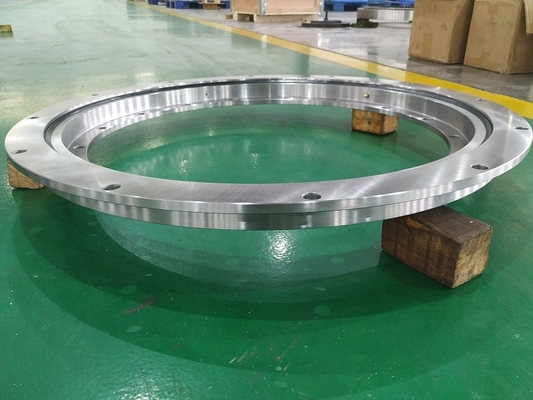

Slewing bearing RK6-16P1Z with flange 20.39x11.97x2.2 inch
Slewing ring RK6-16P1Z bearings have a flanged cross- section on one or both rings and range the flanged design reduces weight and provides the equipment designer greater flexibility for configuration of adjacent mounting structures and bolting arrangements.
Bearing item:RK6-16P1Z
Bearing name:Turntable bearing RK6-16P1Z
Structure:four point contact ball slewing bearing with two flange
The bearing full size :20.39X11.97X2.2 inch
The bearing outer diameter:20.39 inch size
The bearing inner diameter:11.97 inch size
The bearing total height:2.2 inch size
The bearing teeth:without teeth
The bearing lubrication:Grease lubrication
All models feature four fittings for lubrication, spaced 90 degrees apart.
Material:42CrMo 50Mn
Heat treatment: Raceway surface queching hardness: HRC55-60,the depth of the harden more than 3mm
The bearing face will marked the slewing bearing type and number
How to choose the right bearing RK6-16P1Z, Please offer the following details:
1.applied loads
2.Collective loads with respective time percentages
3..Speed or number of movements and angle per time unit together with the relating collective loads
4..Circumferential forces to be transmitted by the gearing
5..Bearing estimated diameter
6.Other operating conditions
Slewing bearing RK6-16P1Z main application: a variety of light to medium duty applications including:
Small cranes, booms, and lifts Industrial positioners and rotary tables ,Chute swivels
Stretch wrapping machines ,Bottle filling machines,Conveyors and related material
handling equipment Rotating displays.
