|Material:||50Mn 42CrMo||Seals Type:||Double Seal|
|Number Of Row:||Single Row||Teeth:||Without Teeth|
|Application:||Communications Equipment||Lubrication:||Grease /Oil Available|

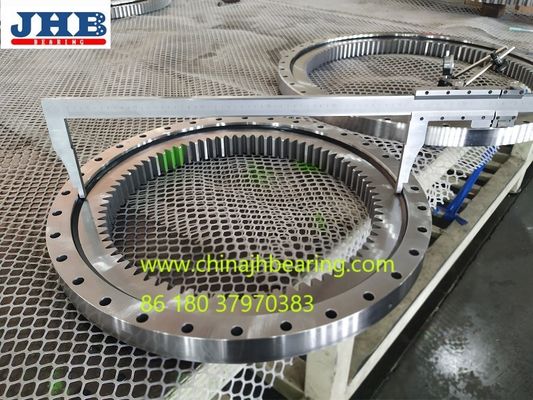

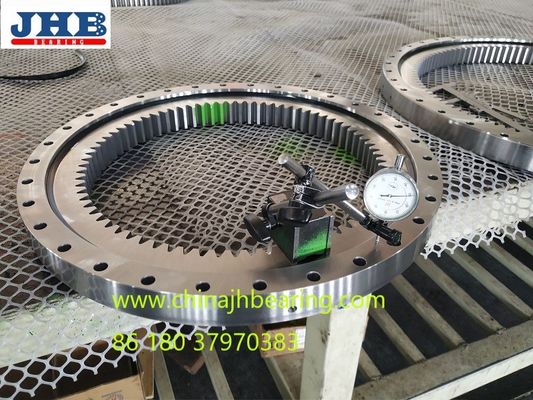

RKS.162.14.0544 crossed roller Slewing bearing 616*445.2*56mm with teeth communications equipment
RKS.162.14.0544 Single row crossed cylindrical roller slewing bearings are simple in design, consisting of a one-piece inner and outer ring and cylindrical rollers separated by polyamide spacers and generally protected by integral seals 616*445.2*56mm
RKS.162.14.0544 slewing bearing
RKS.162.14.0544 slewing ring
RKS.162.14.0544 turntable bearing
RKS.162.14.0544 crossed roller slewing bearing with internal gear
|Outer diameter(OD)||616 mm|
|Inner diameter(ID)||445.2 mm|
|Gear teeth m||6|
|Gear teeth Z||76|
|Package||Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case.|
|The delivery time||20-30 days|
|Serive||Technology communicate with engineer, and if you need the assembly drawing,we can send to you|
RKS.162.14.0544 Bearing material:
The blanks of bearing rings are mainly made of rods and tubes, while the forging process is only applicable to rods. However, forgings are the most used blank materials in bearing manufacturing, and are suitable for large and medium-sized bearings. Forging can be divided into hot forging, cold forging and warm forging. Hot forging refers to processing above the re-crystallization temperature of the billet metal, warm forging is forging at a temperature not exceeding the re-crystallization temperature, and cold forging refers to forging at normal temperature.
The purpose of ferrule forging: 1. Through forging, obtain a blank with a size similar to the product, improve the utilization of metal materials, reduce the amount of machining, and reduce costs. 2. Forging can eliminate the internal defects of the metal, improve the structure, and thus increase the service life of the bearing.
Slewing bearings RKS.162.14.0544 perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing tables
• ladle turrets
• offshore applications
• railway bogies
• rotary platforms
• solar mirrors
• tunnel boring machines
• wind turbines
Slewing bearing is one of our main products.
1. four point contact ball slewing bearing (no gear, external gear, internal gear);
2. two row ball slewing bearing (no gear, external gear, internal gear);
3. crossed cylindrical roller slewing bearing;(no gear, external gear, internal gear);
4. three row cylindrical roller slewing bearing;(no gear, external gear, internal gear);
5. crossed tapered roller slewing bearing; (no gear, external gear, internal gear);
6. ball and roller combined slewing bearing.(no gear, external gear, internal gear);
Our team advantage:
We have 70 employees, with 10 experienced engineers and professional technicists. The most of Engineer from LYC and ZWZ brand factory, they had owned produce and design and after sales experienced to design the bearing.We can also design the drawing according to the bearing work condition to meet the customer requirement.
Equipped with advanced manufacturing CNC Machine and test instruments to insure the accurate tolerance , all bearings are of uniform marking and packing with superior quality, reasonable prices and perfect services. Meanwhile we can make the module to test the mounting hole.
All the bearing from the forging to assembly process,It will need to inspect step.For the bearing forging we will need to test the size and hardness and surface, for the lathe process and grinding process,first it will need to check by the worker ,and then the professional inspector will checking the size and accurate,The last step the monitor will inspect the size. It can insure zero defect.
It can calculate the load curve.
Can offer assembly drawing based on the bearing working condition
Can offer pre- sale ,sale and after sale service
