VLA200544N bearing,VLA20054 Slewing bearing dimension,VLA20054 Bearing supplier

Large Image : VLA200544N bearing,VLA20054 Slewing bearing dimension,VLA20054 Bearing supplier

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or Quality certificate
Model Number:	VLA20054

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiated
Packaging Details:	standard export package
Delivery Time:	in stock ,if unavailable,It will need 20-30 days
Payment Terms:	T/T,L/C
Supply Ability:	100 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	Double Seal
Number Of Row:	Single Row

VLA200544N bearing,VLA20054 Slewing bearing Specifications

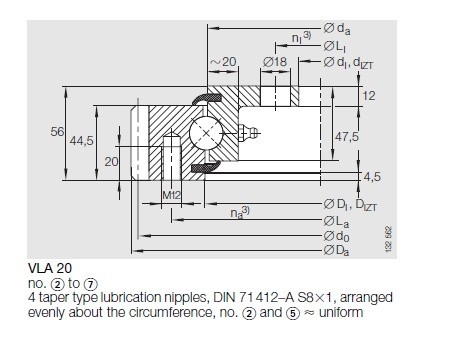

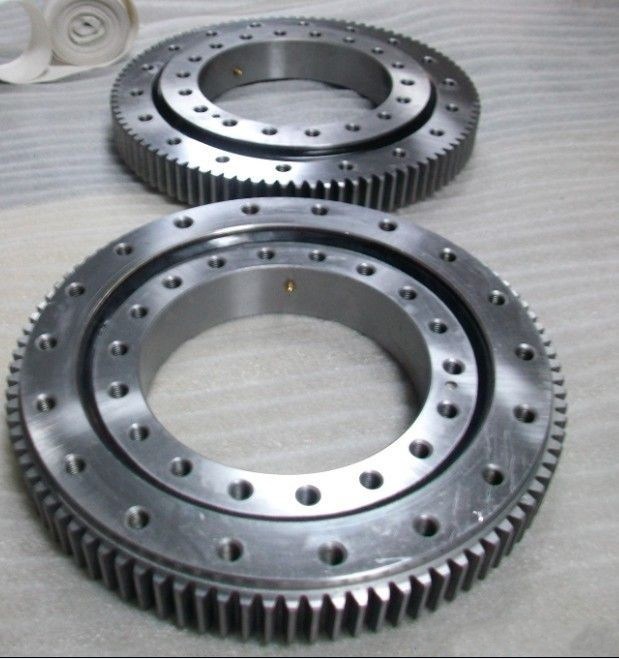

Four point contact ball slewing bearing VLA20054
Dimension 434x640.3x56 mm
Material :50Mn or 42CrMo
ISO9001:2008 Approval
VA: Four point contact bearing, external teeth, sealed, selectable internal clearance, lubrication nipple
      on circumference of untoothed ring
VLA200544N bearing,VLA20054 Slewing bearing  as follow:

Designation	Weight (kgs)	Dimension (mm)			Gear teeth			Basic load ratings (KN)
Designation	Weight (kgs)	Da	di	H	Do	m	z	Axial Ca	Axial Coa	Radial Cr	Radial Cor
VLA 20 0414 N	29.5	503.3	304	56	495	5	99	169	295	111	110
VLA 20 0544 N	41.5	640.3	434	56	630	6	105	188	385	123	145
VLA 20 0644 N	48.5	742.3	534	56	732	6	122	200	455	131	171
VLA 20 0744 N	54.5	838.1	634	56	828	6	138	211	530	138	198
VLA 20 0844 N	65.5	950.1	734	56	936	8	117	222	600	145	224
VLA 20 0944 N	71.5	1046.1	834	56	1032	8	129	231	670	151	250
VLA 20 1094 N	83.5	1198.1	984	56	1184	8	148	244	770	160	290

INA Slewing bearing,slewing ring Suffix and Description:
H:Hardened gear teeth on bearing ring
N:Normalised gear teeth on bearing ring
V:Quenched and tempered gear teeth on bearing ring
VSP:Bearing with preload
ZT:Centring on inner and outer rings
RR:Corrosion-resistant design with INA special plating Corrotect
RL0, 1, 2, 3: Restricted internal clearance
VLA200544N bearing,VLA20054 Slewing bearing Application:
Foundry operation
Construction machinery (e.g. crane, dragline excavator, vibratory roller)
Vehicles and vehicle attachments (e.g. lorry-mounted crane)
Fork lift trucks and fork lift truck attachments
Sewage treatment plant
Wind power equipment
Robots
Antennae
Machine tools
Measuring equipment
Medical equipment
