XSI141094N slewing bearing with internal gear,XSI141094N slewing ring 1164x984x56mm
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 P0 | Seals Type: | Double Seal Rubber |
|---|---|---|---|
| Number Of Row: | Single Row |

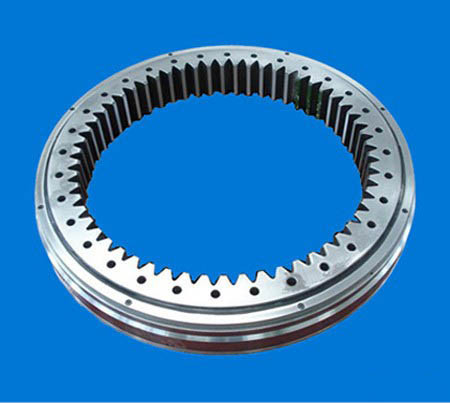

XSI141094N Bearing,XSI141094N crossed roller slewing bearing with internal gear
teeth technology parameter as follow:
|
Description |
XSI141094N crossed roller slewing bearing |
|
Outside and Inside diameter tolerances |
in accordance with ISO2768-m |
|
dimension |
1164x984x56 mm |
|
Outer diameter(OD) |
1164 mm |
|
Inner diameter(ID) |
984mm |
|
Width/Height/(H) |
56 mm |
|
Axial Ca |
390 KN |
|
Axial Cor |
1360 KN |
|
Radial Ca |
246 KN |
|
Radial Cor |
670 KN |
|
Gear teech do |
1000 |
|
Gear teeth m |
8 |
|
Gear teeth Z |
125 |
|
Material |
42CrMo,42CrMo4V,50Mn |
|
Package |
Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |
XSI141094N Crossed roller bearings structure description:

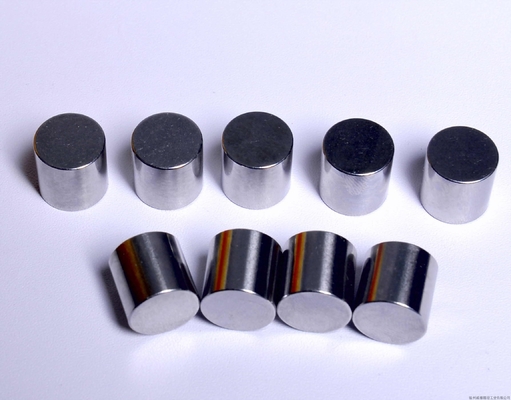

XSI141094N Crossed roller bearings are units comprising inner and outer rings with a closing plug and securing dowel, rolling elements, spacers, contact seals and lubrication nipples.
1.gear teeth on the outer ring, inner ring or without gear teeth.
2.bearing rings with through holes or threaded holes for fixing screws
3.are suitable for circumferential speeds
4.can support high radial loads,moderate axial loads and tilting moment loads.
5.are suitalbe for operating temperatures from -25 ℃ to +80 ℃

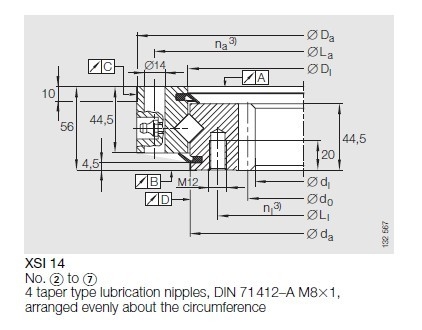

XSI14: Crossed roller bearing, standard series 14, internal teeth, sealed, preloaded, lubrication nipple
on circumference of untoothed ring
Crossed roller bearings standard series 14 internal gear teeth series XSI:
|
Designation |
Weight (kgs) |
Dimension (mm) |
Gear teeth |
Basic load ratings (KN) |
|||||||
|
|
|
Da |
di |
H |
do |
m |
z |
Axial Ca |
Axial Coa |
Radial Cr |
Radial Cor |
|
XSI 14 0414 N |
31 |
484 |
325 |
56 |
335 |
5 |
67 |
229 |
520 |
146 |
250 |
|
XSI 14 0544 N |
43 |
614 |
444 |
56 |
456 |
6 |
76 |
270 |
680 |
170 |
330 |
|
XSI 14 0644 N |
50 |
714 |
546 |
56 |
558 |
6 |
93 |
290 |
800 |
185 |
395 |
|
XSI 14 0744 N |
58 |
814 |
648 |
56 |
660 |
6 |
110 |
315 |
930 |
200 |
455 |
|
XSI 14 0844 N |
69 |
914 |
736 |
56 |
752 |
8 |
94 |
340 |
1050 |
215 |
510 |
|
XSI 14 0944 N |
76 |
1014 |
840 |
56 |
856 |
8 |
107 |
360 |
1170 |
227 |
580 |
|
XSI 14 1094 N |
91 |
1164 |
984 |
56 |
1000 |
8 |
125 |
390 |
1360 |
246 |
670 |
XSI141094N Bearing, XSI141094N Slewing ring, XSI141094N crossed roller slewing bearing Application:
Foundry operation
Construction machinery (e.g. crane, dragline excavator, vibratory roller)
Vehicles and vehicle attachments (e.g. lorry-mounted crane)
Fork lift trucks and fork lift truck attachments
Sewage treatment plant
Wind power equipment
Robots
Antennae
Machine tools
Measuring equipment
Medical equipment
JinHang Precision Bearing mainly export high quantities XSI141094N Slewing Bearing and relative products, we have huge stocks for XSI141094N slewing ring and relative items, we supply high quality XSI141094N four point contact ball Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in XSI141094N Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly.
