Four point contact ball slewing bearing E787/760G2,760x950x80mm,used for radial stacker front track equipment.
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 P0 | Seals Type: | No Seal |
|---|---|---|---|
| Number Of Row: | Single Row | Rolling: | Ball |
| Material: | 50Mn | Lubrication: | Grease |
| Application: | Radial Stacker |

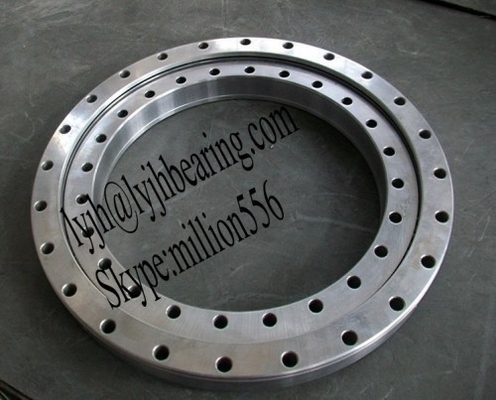

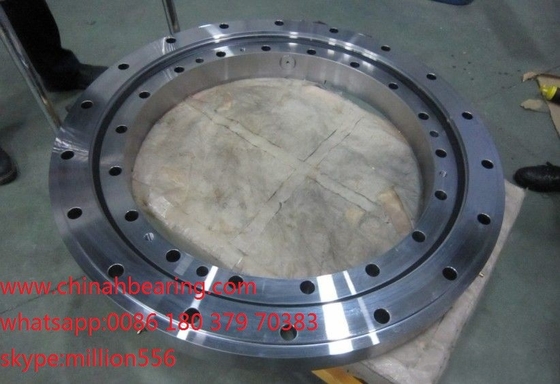

Four point contact ball slewing bearing E787/760G2,760x950x80mm,used for radial stacker front track equipment.
We had offered the bearing E787/760G2 to our mining equipment customer ,Now We will introduce Slewing bearing E787/760G2 specification as follows:
| Slewing bearing type | E787/760G2 |
| Dimension, | 760x950x80mm |
| Outer dia: | 950 mm |
| Inner dia: | 760mm |
| Height: | 80 mm |
| Weight | 130 kgs |
| Outer ring hole qty | 24 pcs |
| Inner ring hole qty | 24 pcs |
| Outer ring and inner ring material | 50Mn |
| Ball bearing | LYC ball Brand ,GCr15SiMn |
| Lubrication | Grease lubrication |
E787/760G2 slewing ring application:
Power Plants, Cement and Mining industry. Making use of top-grade components,
Stacker Handling Equipment,Reclaimer Machine,Grab.
E787/760G2 slewing bearing load information:

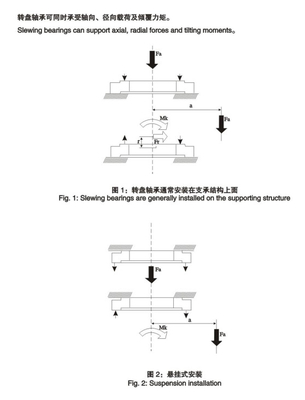

E787/760G2 can support axial ,radial forces and tilting moments.
E787/760G2 Slewing bearing selection:
JinHang Precision slewing bearing are allocated critical load curves for their static load capacity.when defining the required bearing load capacity, the determined loads must be multiplied by the “load factors” according to the work condition.
E787/760G2 slewing bearing transport and storage:
Slewing bearing required careful handing
Slewing bearing should always be transported and stored in horizontal position and be stored in dry roofed areas.USE eyebolts for horizontal handling,Impact,particularly in radical direction,must be avoided.
The surface of slewing bearing should be applied with anti-corrosion oil,and the anti-corrosion period is 6 months,longer storage(as backup,for example) periods will require special perservation.
