Slewing Ring Bearing RKS.060.20.0944 For Swivel Turntable
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Lubrication: | Oil Lubrication | Materical: | 50Mn 42CrMo |
|---|---|---|---|
| Heat Treatment: | HB240-280 | Tooth Surface: | HRC55-60 |
| Clearance: | Axial Clerance | Finished Time: | 40 Days |

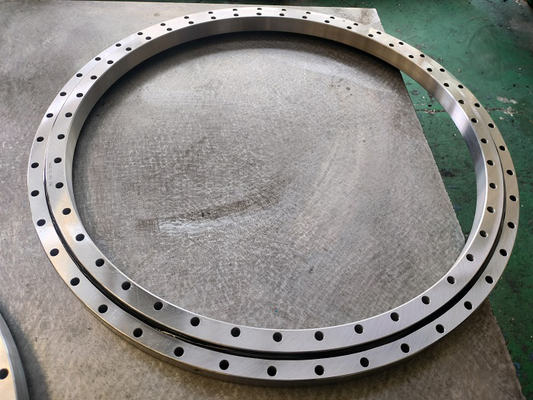

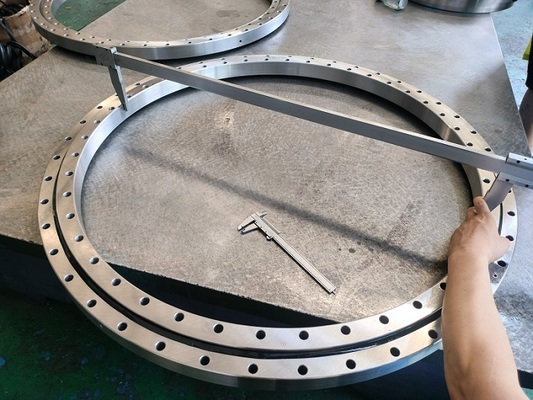

Slewing ring bearing RKS.060.20.0944 for swivel turntable
Slewing bearing item:RKS.060.20.0944
Boundary dimension metric size: 1016X872X56mm
Outer diameter:1016 mm
Inner diameter:872mm
Height:56mm
Structure:light series four point contact ball bearing
Lubrication: Grease lubrication
Full size inch size:40”x34.33”x2.2” inch size
Outside diameter:40”
Inside diameter:34.33”
Width:2.2”
The seal operation temperature of seal material range from-40 to +110 degree
Oil nipple yes
Outer ring and inner ring material:42CrMo,50Mn
Rolling elements:Ball
Ball material:GCr15
Seal material:NRC
Seal :Double seal
Teeth :Without teeth
Service:Offer drawing or service support
Application:hoisting, mechanical handling and general mechanical engineering
Slewing bearings perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing tables
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• solar mirrors
• tunnel boring machines
• wind turbines
