Slewing Ring Fa-00r3 Internal Gear Teeth Factory 1166X985.6X54mm
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Lubrication: | Oil Lubrication | Materical: | 50Mn 42CrMo |
|---|---|---|---|
| Heat Treatment: | HB240-280 | Tooth Surface: | HRC55-60 |
| Clearance: | Axial Clerance | Finished Time: | 40 Days |

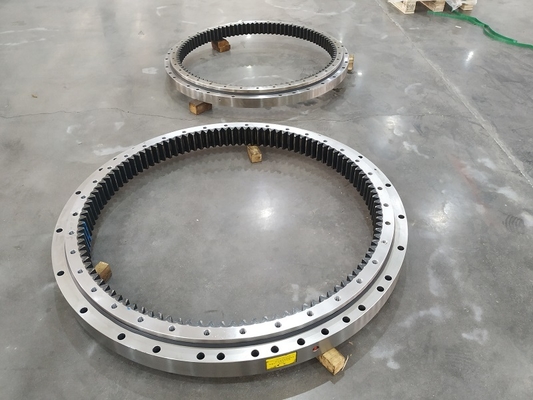

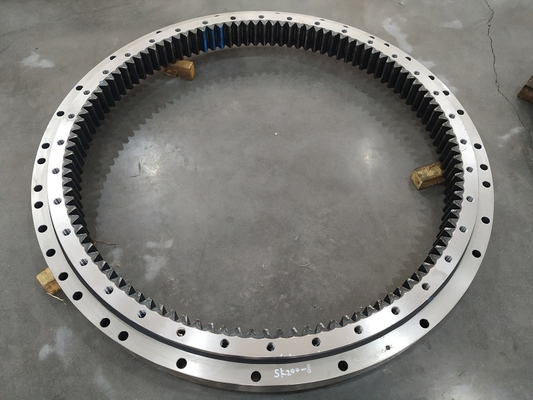

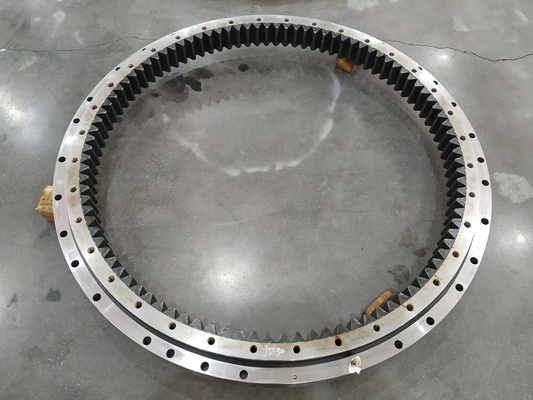

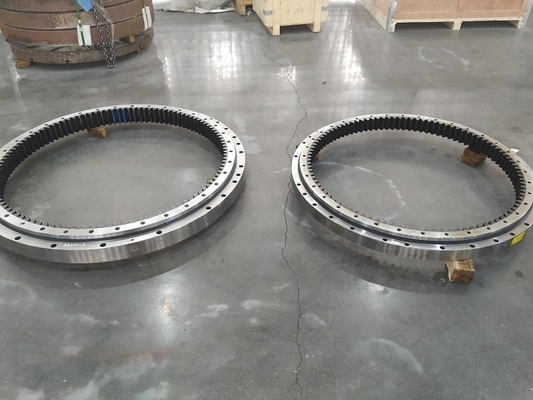

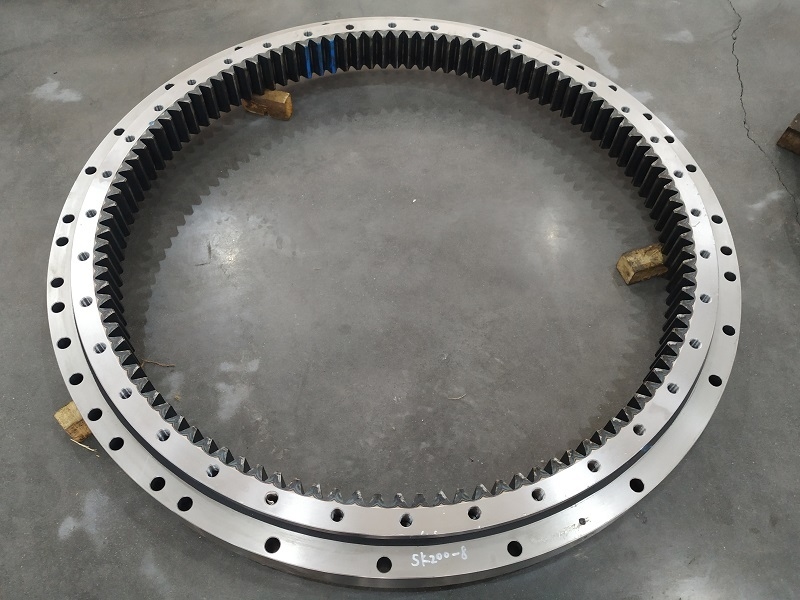

Slewing ring FA-00R3 internal gear teeth factory 1166X985.6X54mm
Bearing item:FA-00R3 fa-00r3
Structure:four point contact ball slewing bearing
Full size:1166x985.6x54mm
Bearing outer diameter:1166mm
Bearing inner diameter:985.6mm
Bearing total height:54mm
Parts :outer ring, inner ring ,ball , seal
Teeth:internal teeth
Teeth number:124pcs
Module:8
Press angel:20 degree
Material:50Mn 42CrMo stainless steel
Gear type: internal gear slewing bearing
Application: boom crane/offshore crane
HS code:8482100090
Lubrication: grease lubrication
Manufacture time:35 days
Package:strong wooden case
Bearing application:Engineering Machine, Solar Power and Wind Power
Slewing bearings perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing tables
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• solar mirrors
• tunnel boring machines
• wind turbines
