XU160260 Crossed Roller Slewing Bearing No Gear 329x191x46 mm In Stock

 XU160260 Crossed Roller Slewing Bearing No Gear 329x191x46 mm In Stock

XU160260  Bearing     XU160260  crossed roller slewing bearing no gear

teeth  technology parameter as follow:

  XU160260 crossed roller bearings structure description

 XU160260  Crossed roller bearings are units comprising inner and outer rings with a closing plug and securing dowel, rolling elements, spacers, contact seals and lubrication nipples.
1.gear teeth on the outer ring, inner ring or without gear teeth.
2.bearing rings with through holes or threaded holes for fixing screws
3.are suitable for circumferential speeds
4.can support high radial loads,moderate axial loads and tilting moment loads.
5.are suitalbe for operating temperatures from -25 ℃ to +80 ℃

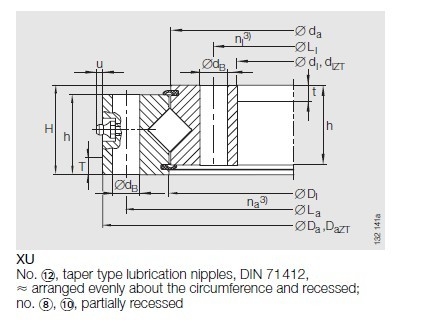

XU:Crossed roller bearing, without gear teeth, preloaded, sealed, lubrication nipple on circumference

of ring without teeth

 XU160260   Bearing,     XU160260 Slewing ring,  XU160260  crossed roller slewing bearing Application:

Foundry operation

Construction machinery (e.g. crane, dragline excavator, vibratory roller)

Vehicles and vehicle attachments (e.g. lorry-mounted crane)

Fork lift trucks and fork lift truck attachments

Sewage treatment plant

Wind power equipment

Robots

Antennae

Machine tools

Measuring equipment

Medical equipment

JinHang Precision Bearing mainly  export high quantities      XU160260  Slewing Bearing and relative products, we have huge stocks for     XU160260   slewing ring  and relative items, we supply high quality     XU160260   four point contact ball  Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in     XU160260  Bearing, please email us :lyjh@lyjhbearing.com    so we will contact you directly.

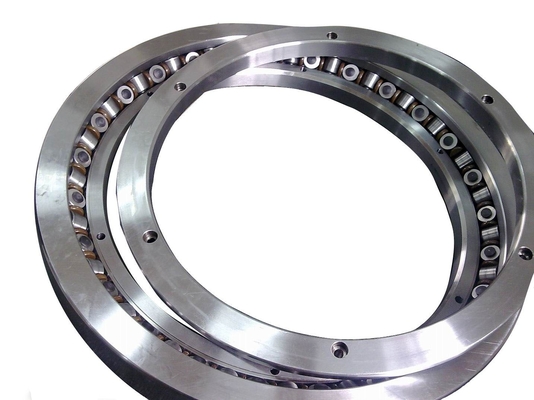

Single row cross roller slewing bearing
It is composed of two or three rings. It has compact structure, light weight, high manufacturing accuracy, small assembly gap and high requirement for installation accuracy. Rollers are 1:1 cross-arranged. It can bear axial force, overturning moment and large radial force at the same time. It is widely used in lifting transportation, construction machinery and military products

Slewing bearing is one of our main products.
1. four point contact ball slewing bearing (no gear, external gear, internal gear);
2. two row ball slewing bearing (no gear, external gear, internal gear);
3. crossed cylindrical roller slewing bearing;(no gear, external gear, internal gear);
4. three row cylindrical roller slewing bearing;(no gear, external gear, internal gear);
5. crossed tapered roller slewing bearing; (no gear, external gear, internal gear);
6. ball and roller combined slewing bearing.(no gear, external gear, internal gear);

Package

1.First lubricated, Second circled with plastic film,kraft paper,blue belt,then packaged in
wooden case,last gathered in Wooden pallet.
2 According to your requirements
