011.40.900 slewing bearing price,011.40.900 slewing ring supplier
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 | Seals Type: | With Seal |
|---|---|---|---|
| Number Of Row: | Single Row |
We/JinHang Precision bearing Co.,LTD can manufacutre the large-size slewing bearing,
The slewing bearing structure including signel row four point contact ball slewing bearing, doulbe row four point contact ball slewing bearing, double row different diameter ball slewing bearing, ball and roller combined slewing bearing and tri-row cylindrical roller combined slewing bearing etc. Above mentioned slewing bearings can also be divided into different structures of no gear type, external gear type and internal gear type as per if exist gear and gear teeth distributing position. Also we can accept the customer’s required technical data.

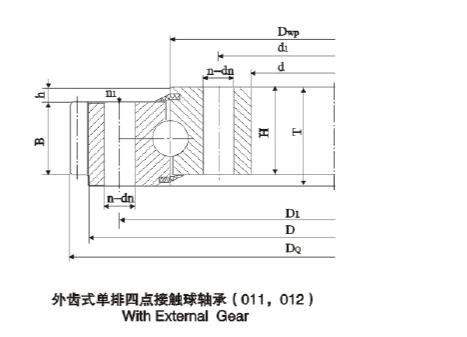

China slewing bearing code 011.40.900 four point contact ball slewing bearing with external gear/teeth description as following:
Description:011.40.900 slewing bearing
Bearing type:011.40.900 slewing ring, 011.40.900 turntable bearing, 011.40.900 four point contact ball slewing bearing,
Dimension(ODXIDXH):1022x778x100 mm
Outer diameter(OD):1022 mm
Inner diameter(ID): 778 mm
Width/Height/(H): 100 mm
011.40.900 slewing bearing with gear parameter as following:
Module(m)::8
Rolling:ball
Package: Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case.
The delivery time: 20-30 days
Service: Technology communicate with engineer, and if you need the assembly drawing,we can send to you.
If you want to know more, please contact us as follows:
JinHang Precision Bearing Co.,Ltd
www.chinajhbearing.com www.lyjhbearing.com
E-mail: lyjh@lyjhbearing.com sales@lyjhbearing.com
lyjhbearing@gmail.com
Skype: million556
