JHB Bearing supply 92-32 1455/1-06265 bearing 1312x1600x90mm,OEM required

We/JinHang Precision bearing Co.,LTD can manufacutre the large-size slewing bearing,

The slewing bearing structure including signel row four point contact ball slewing bearing, doulbe row four point contact ball slewing bearing, double row different diameter ball slewing bearing, ball and roller combined slewing bearing and tri-row cylindrical roller combined slewing bearing etc. Above mentioned slewing bearings can also be divided into different structures of no gear type, external gear type and internal gear type as per if exist gear and gear teeth distributing position. Also we can accept the customer’s required technical data.

  IMO slewing bearing Series 932 standard bearing type 92-32 1455/1-06265  Four point contact ball slewing bearing with internal teeth description as following:

• Bearing type: 92-32 1455/1-06265  bearing, 92-32 1455/1-06265    slewing bearing,
•              92-32 1455/1-06265    slewing ring, 92-32 1455/1-06265    turntable bearing
• Structure:four  point contact ball slewing bearing with external gear
• Brand Name: JHB or OEM Required
• Dimension:1312x1600x90mm
• Bore Size: 1312 mm metric size
• Outside Diameter:1600 mm metric size
• Height:90 mm metric size
• Teeth Options: with  teeth/gear
• Seals Type: double lip seal
• Lubrication:grease
• Bearing mark: Brand+92-32 1455/1-06265   Or your requirement
• Place of Origin: LuoYang, China (Mainland)
• Delivery Time: 20-30 days
• Sample:available
• Material: 50Mn,42CrMo
• The package: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case
• Payment: T/T or L/C or Western Union
• 92-32 1455/1-06265   bearing gearing/teeth specification:
• Pictch diamameter(do):1330mm
• Module:10mm
• Number of teeth:133

92-32 1455/1-06265   slewing bearing Specifications

1. High precision: P5,P6,P0
2. Low noise
3. Long serive life
4. short delivery time

5. OEM service provided

6. Processing with supplied drawings

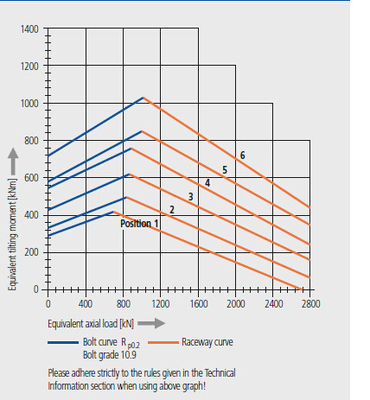

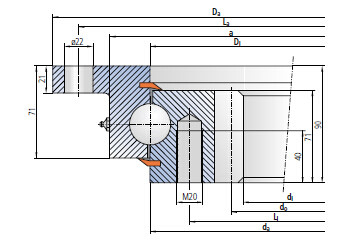

The bearing  92-32 1455/1-06265     bearing dimension, 92-32 1455/1-06265   slewing bearing supplier, 92-32 1455/1-06265   slewing ring price, 92-32 1455/1-06265   turntable bearing manufacture dimension and rough drawing as follows:

 JinHang Precision Bearing mainly  export high quantities   92-32 1455/1-06265  , Slewing Bearing and relative products, we  had owned advanced CNC Machine to manufacture  them.From the forging material to Bearing assembly ,we had performance ISO Quality system. Every process, we had make the note and keep them. Also, our engineer can supply the technolgoy communication and guide. If you want to know the  92-32 1455/1-06265   Slewing ring more, Please contact us as follow,Thanks for your trust!
