VA160235N slewing ring, VA160235N slewing bearing with external gear,318.6x171x40 mm

VA160235N Bearing,     VA160235N  slewing bearing with external  gear  technology data as follow:

  VA160235N   Bearing, VA160235N Slewing ring, VA160235N slewing bearing Specifications:

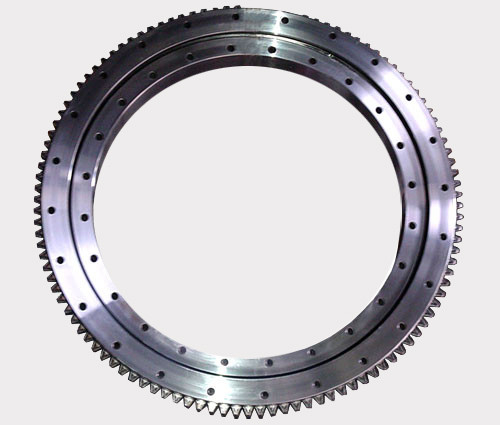

Type :  VA160235N  Four point contact ball slewing bearing  with external gear teeth ,  Dimension:318.6x171x40 mm

 1.High load-carrying capability

2.Ability to accept the combined loads;axial ,radial and tilting moments

3.Flexibility with product design.

4.42CrMo/50Mn material be used to make slewing ring bearing

Four point contact ball slewing bearings   VA160235N  description:

 these slewing rings without preload are robust and proven under very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction
 they are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in simple metalworking machines, wind power equipment and construction machinery

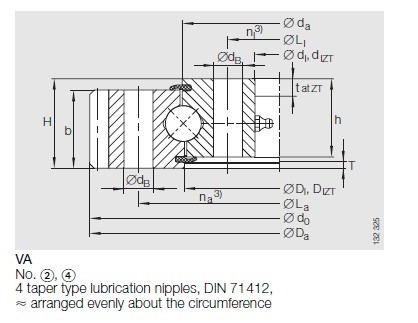

 VA: Four point contact bearing, external teeth, sealed, selectable internal clearance, lubrication nipple

      on circumference of untoothed ring

Four point contact bearings external gear teeth series VA:

VA160235N   Bearing,  VA160235N  Slewing ring,   VA160235N slewing bearing Application:

Foundry operation

Construction machinery (e.g. crane, dragline excavator, vibratory roller)

Vehicles and vehicle attachments (e.g. lorry-mounted crane)

Fork lift trucks and fork lift truck attachments

Sewage treatment plant

Wind power equipment

Robots

Antennae

Machine tools

Measuring equipment

Medical equipment

JinHang Precision Bearing mainly  export high quantities   VA160235N    Slewing Bearing and relative products, we have huge stocks for  VA160235N   slewing ring  and relative items, we supply high quality  VA160235N   four point contact ball  Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in    VA160235N   Bearing, please email us :lyjh@lyjhbearing.com    so we will contact you directly.
