RK6-22E1Z slewing bearing,RK6-22E1Z slewing ring with external gear, 25.15x17.09x2.205inch
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 P0 | Seals Type: | With Seal |
|---|---|---|---|
| Number Of Row: | Single Row |
The bearing RK6-22E1Z bearing, RK6-22E1Z slewing bearing, RK6-22E1Z slewing ring, RK6-22E1Z turntable bearing description as follows:
- Bearing type: RK6-22E1Z bearing, RK6-22E1Z slewing bearing,
- RK6-22E1Z slewing ring, RK6-22E1Z turntable bearing
- Structure:four point contact ball slewing bearing with external gear
- Brand Name: JHB or OEM Required
- Bore Size: 17.09 inch size
- Outside Diameter: 25.15 inch size
- Height:2.205 inch size
- Gear Options: with gear/with teeth
- Seals Type: yes
- Lubrication:grease
- Bearing mark: Brand+ RK6-22E1Z Or your requirement
- Place of Origin: LuoYang, China (Mainland)
- Delivery Time: 20-30 days
- Material: 50Mn,42CrMo
- The package: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case
- Payment: T/T or L/C
RK6-22E1Z slewing bearing Specifications
1. High precision: P5,P6,P0
2. Low noise
3. Long serive life
4. short delivery time
5. OEM service provided
6. Processing with supplied drawings

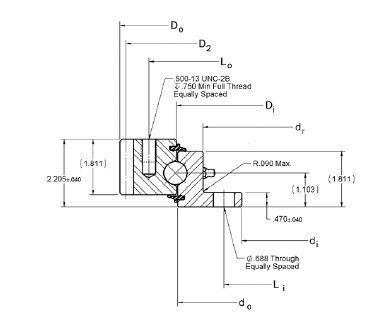

The bearing RK6-22E1Z bearing, RK6-22E1Z slewing bearing, RK6-22E1Z slewing ring, RK6-22E1Z turntable bearing dimension and rough drawing as follows:
|
Bearing type |
Boundary dimension |
Weight( Lbs) |
||
|
Outer diameter Do (In) |
Inner diameter di(In) |
Height(In) |
||
|
RK6-22E1Z |
25.15 |
17.09 |
2.205 |
96 |
RK6-22E1Z bearings have been used successfully in a variety of light to medium duty applications including:
Small cranes,booms,and lifts,industrial positioners and rotary tables,chute swivels,stretch wrapping machines,bottle filling machines,conveyors and related material handing equipment,rotating displays.
JinHang Precision Bearing mainly export high quantities RK6-22E1Z Slewing Bearing and relative products, we have huge stocks for RK6-22E1Z slewing ring and relative items, we supply high quality RK6-22E1Z four point contact ball Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in RK6-22E1Z turntable bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly.
JinHang Precision Bearing Co.,Ltd
www.chinajhbearing.com www.lyjhbearing.com
E-mail: lyjh@lyjhbearing.com or lyjhbearing@gmail.com
Skype: million556
