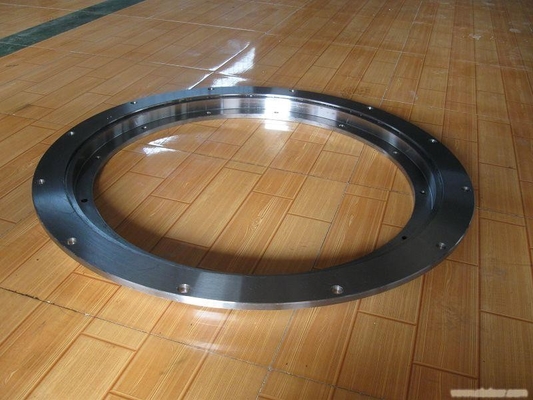

RK6-25P1Z bearing price, RK6-25P1Z slewing bearing, RK6-25P1Z slewing ring with flange
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 P0 | Seals Type: | With Seal |
|---|---|---|---|
| Number Of Row: | Single Row |
The bearing RK6-25P1Z bearing, RK6-25P1Z slewing bearing, RK6-25P1Z slewing ring, RK6-25P1Z turntable bearing description as follows:
• Bearing type: RK6-25P1Z bearing, RK6-25P1Z slewing bearing,
• RK6-25P1Z slewing ring, RK6-25P1Z turntable bearing
• Structure:four point contact ball slewing bearing with flange
• Brand Name: JHB or OEM Required
• Bore Size: 21.03 inch size
• Outside Diameter: 29.45 inch size
• Height:2.205 inch size
• Gear Options: No gear/no teeth
• Seals Type: yes
• Place of Origin: LuoYang, China (Mainland)
• Delivery Time: 20-30 days
• Material: 50Mn,42CrMo
• The package: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case

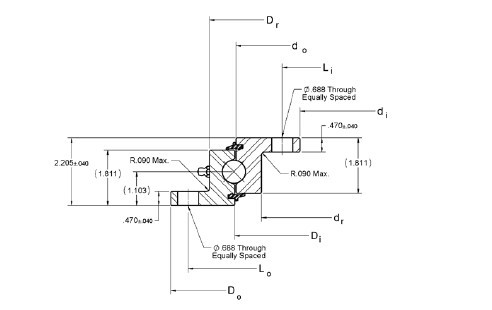

The bearing RK6-25P1Z bearing, RK6-25P1Z slewing bearing, RK6-25P1Z slewing ring, RK6-25P1Z turntable bearing dimension and rough drawing as follows:
|
Bearing type |
Boundary dimension |
Weight( Lbs) |
||
|
Outer diameter Do (In) |
Inner diameter di(In) |
Height(In) |
||
|
RK6-25P1Z |
29.45 |
21.03 |
2.205 |
89 |
RK6-25P1Z bearings have been used successfully in a variety of light to medium duty applications including:
Small cranes,booms,and lifts,industrial positioners and rotary tables,chute swivels,stretch wrapping machines,bottle filling machines,conveyors and related material handing equipment,rotating displays.
JinHang Precision Bearing mainly export high quantities RK6-25P1Z Slewing Bearing and relative products, we have huge stocks for RK6-25P1Z slewing ring and relative items, we supply high quality RK6-25P1Z four point contact ball Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in RK6-25P1Z turntable bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly.
If you want to know more, please contact us as follows:
JinHang Precision Bearing Co.,Ltd
www.chinajhbearing.com www.lyjhbearing.com
E-mail: lyjh@lyjhbearing.com or lyjhbearing@gmail.com
Skype: million556
