VSI200944N slewing ring , VSI200944N slewing bearing,VSI200944 Bearing price

VSI200944N  Bearing, VSI200944N   Slewing ring, VSI200944N slewing bearing  technology data as follow:

Manufacture standard:JB/T 10471-2004 rolling bearing  slewing bearing

Dimension:1016x840x56 mm/Metic

ID(inner diameter)/Bore: 1016 mm

OD(outer diameter):840 mm

Width/Height/thickness:56 mm

Axial Ca: 231 KN

Axial Cor:1280 KN

Radial Ca:151 KN

Radial Cor:570 KN

VSI200944N  Slewing bearing with internal gear teeth parameter:

do=856 mm

m=8

Z=107

VSI200944N   Bearing,VSI200944N  Slewing ring, VSI200944N  slewing bearing Specifications:

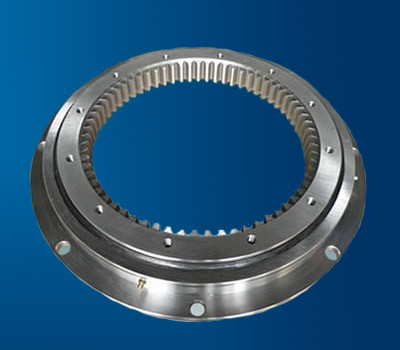

Type : VSI200944N Four point contact ball slewing bearing with internal gear teeth ,  Dimension: 1016x840x56 mm

 1.High load-carrying capability

2.Ability to accept the combined loads;axial ,radial and tilting moments

3.Flexibility with product design.

4.42CrMo/50Mn material be used to make slewing ring bearing

Four point contact bearings VSI200944N  description:

 these slewing rings without preload are robust and proven under very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction
 they are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in simple metalworking machines, wind power equipment and construction machinery

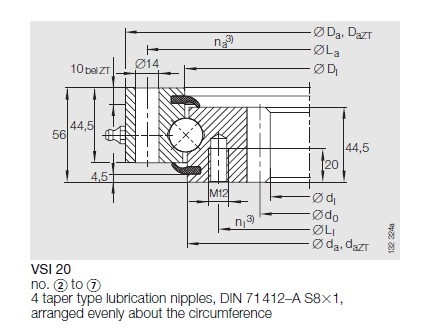

VSI20: Four point contact bearing, standard series 20, internal gear teeth, selectable internal clearance,

       sealed, lubrication nipple on circumference of ring without teeth

Four point contact bearing standard series 20 internal gear teeth Series VSI:

VSI200944N    Bearing, VSI200944N  Slewing ring, VSI200944N slewing bearing Application:

Foundry operation

Construction machinery (e.g. crane, dragline excavator, vibratory roller)

Vehicles and vehicle attachments (e.g. lorry-mounted crane)

Fork lift trucks and fork lift truck attachments

Sewage treatment plant

Wind power equipment

Robots

Antennae

Machine tools

Measuring equipment

Medical equipment

JinHang Precision Bearing mainly  export high quantities VSI200944N   Slewing Bearing and relative products, we have huge stocks for VSI200944N   slewing ring  and relative items, we supply high quality VSI200944N   four point contact ball  Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in  VSI200944N  Bearing, please email us :lyjh@lyjhbearing.com    so we will contact you directly.
