VSA200844N slewing Bearing, VSA200844N Slewing ring dimension:950.1x772x56 mm

VSA200844N  Bearing, VSA200844N   Slewing ring, VSA200844N  slewing bearing  technology data as follow:

Manufacture standard:JB/T 10471-2004 rolling bearing  slewing bearing

Dimension:950.1x772x56 mm/Metic

ID(inner diameter)/Bore: 950.1 mm

OD(outer diameter):772 mm

Width/Height/thickness:56 mm

Axial Ca: 222 KN

Axial Cor:115 KN

Radial Ca:145 KN

Radial Cor:510 KN

VSA200844N Slewing bearing with external gear teeth parameter:

do=936 mm

m=8

Z=117

VSA200844N   Bearing,VSA200844N  Slewing ring, VSA200844N  slewing bearing Specifications:

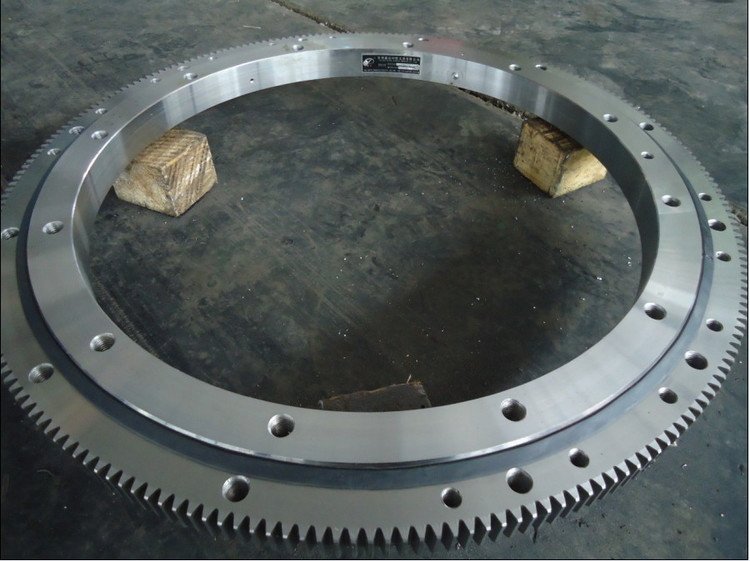

Type : VSA200844N  Four point contact ball slewing bearing with external gear teeth ,  Dimension: 950.1x772x56 mm

 1.High load-carrying capability

2.Ability to accept the combined loads;axial ,radial and tilting moments

3.Flexibility with product design.

4.42CrMo/50Mn material be used to make slewing ring bearing

Four point contact bearings VSA200844N  description:

 these slewing rings without preload are robust and proven under very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction
 they are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in simple metalworking machines, wind power equipment and construction machinery

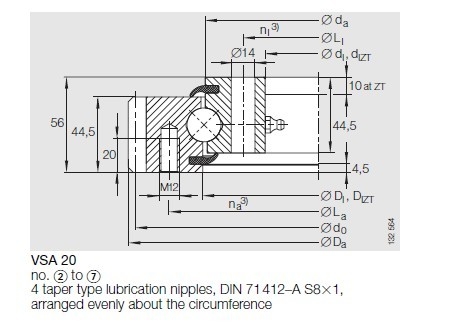

VSA20: Four point contact bearing, standard series 20, external gear teeth, selectable internal

        clearance, sealed, lubrication nipple on circumference of ring without teeth

VSA20 four point contact ball bearing type series:

VSA200844N    Bearing, VSA200844N   Slewing ring, VSA200844N  slewing bearing Application:

Foundry operation

Construction machinery (e.g. crane, dragline excavator, vibratory roller)

Vehicles and vehicle attachments (e.g. lorry-mounted crane)

Fork lift trucks and fork lift truck attachments

Sewage treatment plant

Wind power equipment

Robots

Antennae

Machine tools

Measuring equipment

Medical equipment

JinHang Precision Bearing mainly  export high quantities VSA200844N   Slewing Bearing and relative products, we have huge stocks for VSA200844N   slewing ring  and relative items, we supply high quality  VSA200844N   four point contact ball  Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in  VSA200844N   Bearing, please email us :lyjh@lyjhbearing.com    so we will contact you directly.
