VSA200544N slewing Bearing, VSA200544N Slewing ring dimension and price:640.3X472X56 mm

VSA200544N  Bearing, VSA200544N   Slewing ring, VSA200544N  slewing bearing  technology data as follow:

Manufacture standard:JB/T 10471-2004 rolling bearing  slewing bearing

Dimension: 640.3X472X56 mm/Metic

ID(inner diameter)/Bore: 640.3 mm

OD(outer diameter):472 mm

Width/Height/thickness:56 mm

Axial Ca: 188 KN

Axial Cor:740 KN

Radial Ca:123 KN

Radial Cor:325 KN

VSA200544N Slewing bearing with external gear teeth parameter:

do=630 mm

m=6

Z=105

VSA200544N   Bearing,VSA200544N  Slewing ring, VSA200544N  slewing bearing Specifications:

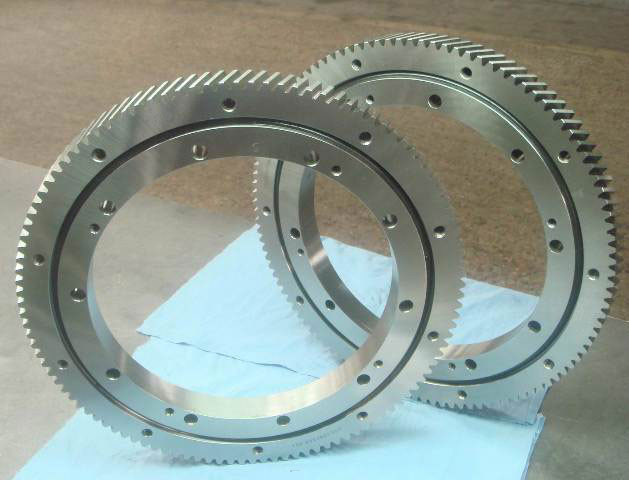

Type : VSA200544N  Four point contact ball slewing bearing with external gear teeth ,  Dimension: 640.3X472X56 mm
 1.High load-carrying capability

2.Ability to accept the combined loads;axial ,radial and tilting moments

3.Flexibility with product design.

4.42CrMo/50Mn material be used to make slewing ring bearing

Four point contact bearings VSA200544N  description:

– these slewing rings without preload are robust and proven under very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction
– they are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in simple metalworking machines, wind power equipment and construction machinery

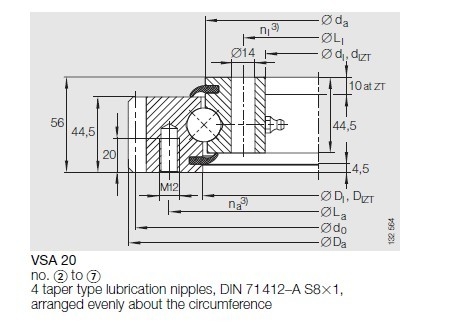

VSA20: Four point contact bearing, standard series 20, external gear teeth, selectable internal

        clearance, sealed, lubrication nipple on circumference of ring without teeth

VSA20 four point contact ball bearing type series:

VSA200544N    Bearing, VSA200544N   Slewing ring, VSA200544N  slewing bearing Application:

Foundry operation

Construction machinery (e.g. crane, dragline excavator, vibratory roller)

Vehicles and vehicle attachments (e.g. lorry-mounted crane)

Fork lift trucks and fork lift truck attachments

Sewage treatment plant

Wind power equipment

Robots

Antennae

Machine tools

Measuring equipment

Medical equipment

JinHang Precision Bearing mainly  export high quantities VSA200544N   Slewing Bearing and relative products, we have huge stocks for VSA200544N   slewing ring  and relative items, we supply high quality  VSA200544N   four point contact ball  Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in  VSA200544N   Bearing, please email us :lyjh@lyjhbearing.com    so we will contact you directly.
