VLI200844N slewing Bearing, VLI200844N Slewing ring,VLI200844N bearing dimension

 Four point contact bearings VLI200844N:
– these slewing rings without preload are robust and proven under very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction
– they are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in simple metalworking machines, wind power equipment and construction machinery

VLI20 mean: Four point contact bearing, light series 20, internal gear teeth, selectable internal clearance,

                        sealed, lubrication nipple on circumference of ring without teeth

VLI200844N  Bearing,VLI200844N Slewing ring, VLI200844N  slewing bearing Specifications

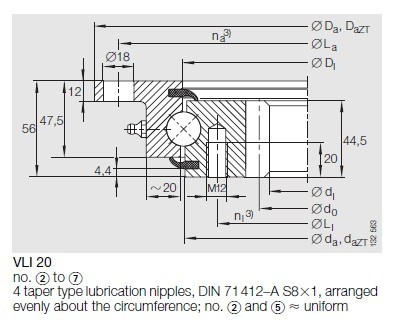

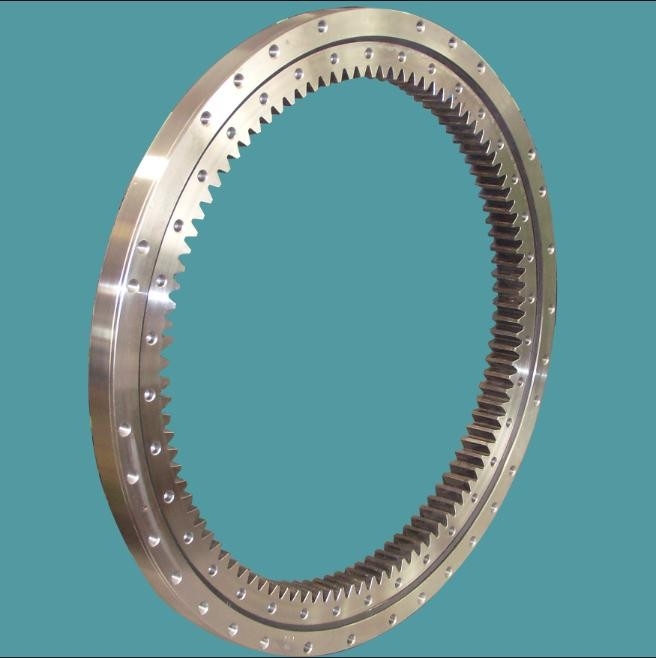

Four point contact ball slewing bearing  VLI200844N  Dimension: 948x736x56 mm
 1.High load-carrying capability

2.Ability to accept the combined loads;axial ,radial and tilting moments

3.Flexibility with product design.

4.42CrMo/50Mn material be used to make slewing ring bearing

 VLI200844N   Bearing, VLI200844N   Slewing ring, VLI200844N slewing bearing  technology data as follow:

Dimension: 948X736X56 mm/Metic

ID(inner diameter)/Bore: 948 mm

OD(outer diameter):736 mm

Width/Height/thickness:56 mm

Axial Ca: 222 KN

Axial Cor:600 KN

Radial Ca:145 KN

Radial Cor:224KN

 VLI200844N   Bearing, VLI200844N  Slewing ring, VLI200844N  slewing bearing Application:

Foundry operation

Construction machinery (e.g. crane, dragline excavator, vibratory roller)

Vehicles and vehicle attachments (e.g. lorry-mounted crane)

Fork lift trucks and fork lift truck attachments

Sewage treatment plant

Wind power equipment

Robots

Antennae

Machine tools

Measuring equipment

Medical equipment

JinHang Precision Bearing mainly  export high quantitiesVLI200844N   Slewing Bearing and relative products, we have huge stocks for VLI200844N   slewing ring  and relative items, we supply high quality  VLI200844N   four point contact ball  Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in   VLI200844N   Bearing, please email us :lyjh@lyjhbearing.com    so we will contact you directly.
