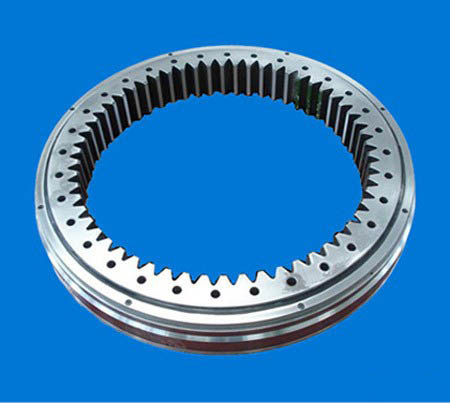

VLI200414N slewing Bearing, VLI200414N Slewing ring, VLI200414N with internal teeth
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 P0 | Seals Type: | Double Seal |
|---|---|---|---|
| Number Of Row: | Single Row |
VLI200414N Bearing,VLI200414N Slewing ring, VLI200414N slewing bearing Specifications

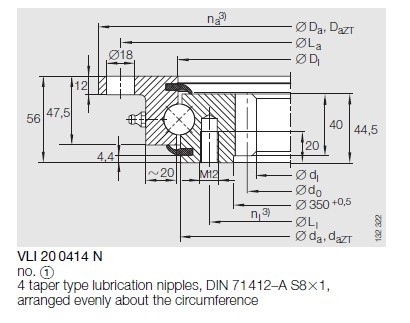

Four point contact ball slewing bearing VLI200414N Dimension: 518x325x56 mm
1.High load-carrying capability
2.Ability to accept the combined loads;axial ,radial and tilting moments
3.Flexibility with product design.
4.42CrMo/50Mn material be used to make slewing ring bearing
VA mean: Four point contact bearing, external teeth, sealed, selectable internal clearance, lubrication nipple
on circumference of untoothed ring
VLI200414N Bearing, VLI200414N Slewing ring, VLI200414N slewing bearing technology data as follow:
|
Designation |
Weight (kgs) |
Dimension (mm) |
Gear teeth |
Basic load ratings (KN) |
|||||||
|
|
|
Da |
di |
H |
do |
m |
z |
Axial Ca |
Axial Coa |
Radial Cr |
Radial Cor |
|
VLI 20 0414 N |
27.5 |
518 |
325 |
56 |
335 |
5 |
67 |
169 |
295 |
111 |
110 |
|
VLI 20 0544 N |
38 |
648 |
444 |
56 |
456 |
6 |
76 |
188 |
385 |
123 |
145 |
|
VLI 20 0644 N |
45 |
748 |
546 |
56 |
558 |
6 |
93 |
200 |
455 |
131 |
171 |
|
VLI 20 0744 N |
51.5 |
848 |
648 |
56 |
660 |
6 |
110 |
211 |
530 |
138 |
198 |
|
VLI 20 0844 N |
61.5 |
948 |
736 |
56 |
752 |
8 |
94 |
222 |
600 |
145 |
224 |
|
VLI 20 0944 N |
67.5 |
1048 |
840 |
56 |
856 |
8 |
107 |
231 |
670 |
151 |
250 |
|
VLI 20 1094 N |
81.5 |
1198 |
984 |
56 |
1000 |
8 |
125 |
244 |
770 |
160 |
290 |
VLI200414N Bearing,VLA201094N Slewing ring, VLI200414N slewing bearing Suffix and Description:
H:Hardened gear teeth on bearing ring
N:Normalised gear teeth on bearing ring
V:Quenched and tempered gear teeth on bearing ring
VSP:Bearing with preload
ZT:Centring on inner and outer rings
RR:Corrosion-resistant design with INA special plating Corrotect
RL0, 1, 2, 3: Restricted internal clearance
VLI200414N Bearing, VLI200414N Slewing ring, VLI200414N slewing bearing Application:
Foundry operation
Construction machinery (e.g. crane, dragline excavator, vibratory roller)
Vehicles and vehicle attachments (e.g. lorry-mounted crane)
Fork lift trucks and fork lift truck attachments
Sewage treatment plant
Wind power equipment
Robots
Antennae
Machine tools
Measuring equipment
Medical equipment
JinHang Precision Bearing mainly export high quantities VLI200414N Slewing Bearing and relative products, we have huge stocks for VLI200414N slewing ring and relative items, we supply high quality VLI200414N four point contact ball Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in VLI200414N Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly.
