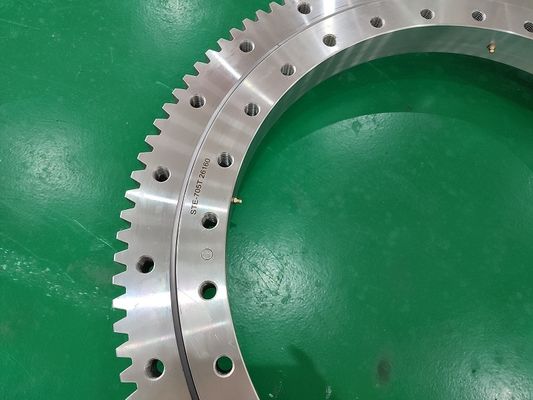

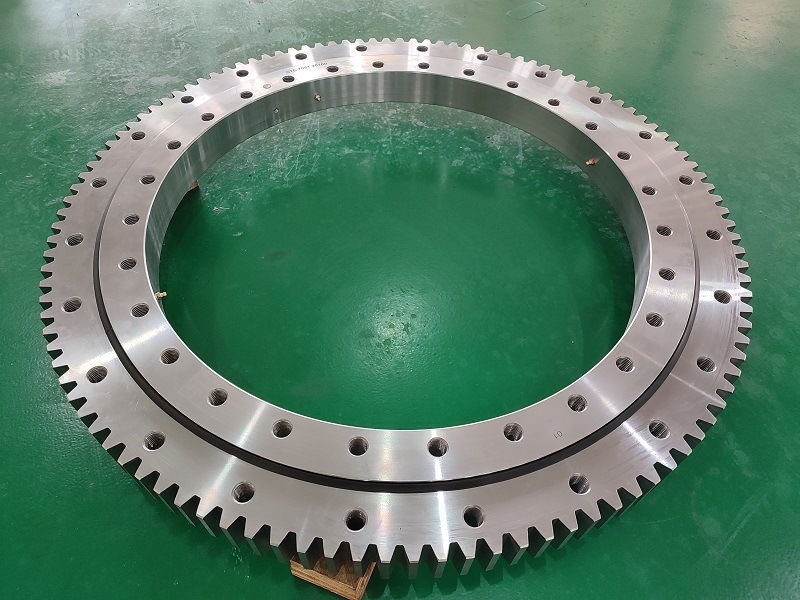

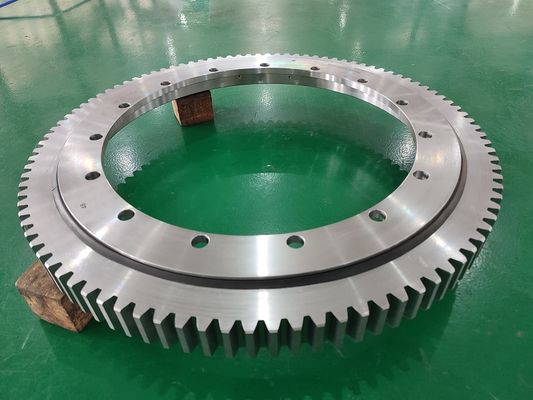

Turntable Bearings RKS.061.25.1204 Dimension 1338X1119X68mm

 Turntable bearings RKS.061.25.1204 dimension 1338X1119X68mm

Slewing ball bearings RKS.061.25.1204 suitable for applications with low requirements for

accuracy and rigidity of the bearing arrangement, such as simple metalworking machines, wind power equipment and construction machinery.

The bearing type:RKS.061.25.1204
The bearing boundary metric dimension:1338X1119X68MM
The bearing outer diameter:52.68” inch size
The bearing inner diameter:44.05” inch size
The bearing width:2.68 inch size
The bearing outer ring with spur teeth
The bearing teeth as following:
Module:10
Teeth number:131pcs
The press angle:20 degree
Modification coefficients:0.5
Lubrication type:form a lubricant film capable of supporting loads on all contact surfaces
seal the bearing against external influences (in the case of grease lubrication) and thus prevent the ingress of solid and liquid contaminants
The bearing ring material:42CrMo,50Mn
The bearing rolling elements:chrome steel
The package:strong wooden case

Slewing bearing is one of our main products.
1. four point contact ball slewing bearing (no gear, external gear, internal gear);
2. two row ball slewing bearing (no gear, external gear, internal gear);
3. crossed cylindrical roller slewing bearing;(no gear, external gear, internal gear);
4. three row cylindrical roller slewing bearing;(no gear, external gear, internal gear);
5. crossed tapered roller slewing bearing; (no gear, external gear, internal gear);
6. ball and roller combined slewing bearing.(no gear, external gear, internal gear);
