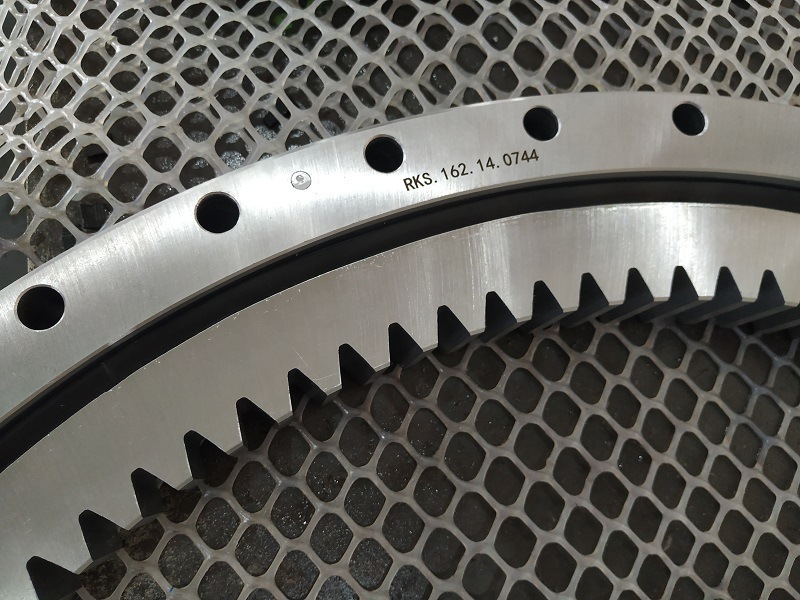

Turntable Roller Bearing Ring With Gear Teeth RKS.162.14.0744

Turntable roller bearing ring with gear teeth RKS.162.14.0744

Bearing structure:single row crossed cylindrical roller slewing bearings with internal teeth.

Bearing RKS.162.14.074 belongs to midum size heavy load bearing.
After mounting has been completed, lubricant needs to be applied to the gear.

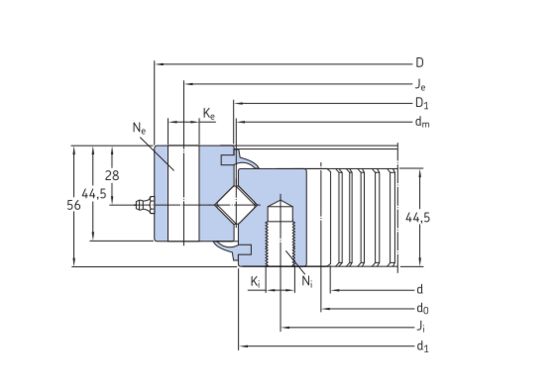

Bearing boundary metric size:816x649.2x56mm
Bearing inch size:32.12”x25.56”x2.2”
Bearing outside diameter:32.12”(816mm)
Bearing inner diameter:25.56”(649.2mm)
Bearing width:2.2”(56mm)
Bearing shape:spur gear
Bearing position:Internal teeth
Gear data:
Module:6
Teeth Number:110pcs
Single row crossed cylindrical roller slewing bearings are protected, as standard, by a sol-
vent free rust inhibitor.
Axial dynamic load:228KN
Static load Co:1070KN
Material:42CrMo,50Mn
At least one grease fitting is supplied in one of the bearing rings for periodic lubrication of the raceway.
Precision rolling elements enable relative rotation and transmit load between the inner and outer rings.


Slewing bearings perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing tables
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• solar mirrors
• tunnel boring machines
• wind turbines
