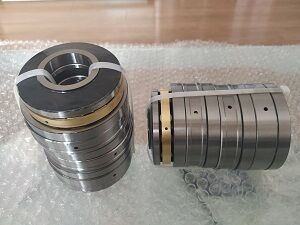

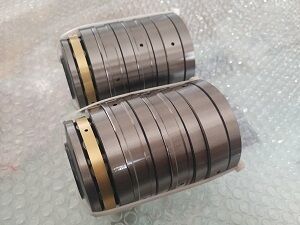

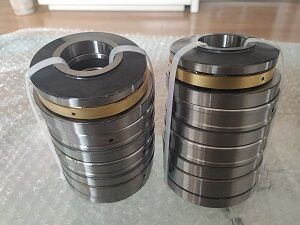

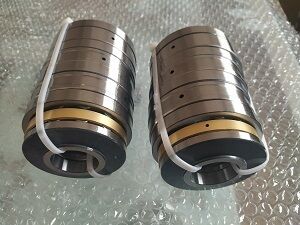

Food Extruder Multi-Stage Tandem Thrust Bearings T-2390 Factory

 Food extruder multi-stage tandem thrust bearings T-2390 factory

Bearing factory Number:T-2390
Item code:T-2390
Original place:China LuoYang
Lubrication:Oil lubrication
Boundary dimension: 23*90*99mm
Outer diameter D:90mm
Inner diameter d:23mm
The total height:99mm
Tandem stages number:three row stages
Bearing Material:High quality bearing steel
Bearing shaft diameter:0.9” inch size
Bearing outer diameter:3.54”inch size
Bearing width:3.9 inch size
Description:cylindrical roller thrust bearing
UPC/HS code:8482500090
Cage type Nylon or Steel or Brass Standard Cage
Precision grade:P5 P4 grade
C :420KN
CO:1190KN
The package:strong carton
Rolling elements:Roller
Tandem bearings consist of several axially arranged thrust cylindrical roller and cage assemblies. Two, three or four thrust cylindrical roller and cage assemblies can be used, corresponding to
product designations 2,3,4,5,Six row and eight row tandem bearings are also available.

Tandem bearings consist of several axially arranged thrust cylindrical roller and cage assemblies. Two, three or four thrust cylindrical roller and cage assemblies can be used, corresponding to
product designations 2,3,4,5,Six row and eight row tandem bearings are also available. These products consist of two triple row and two four row tandem bearings respectively. The special elastic system of matched rings and washers made from hardened rolling bearing steel ensures that there is an equal load on all rows regardless of the magnitude of the axial load. Bench marking performed has shown that a comparable competitor product has been designed only for a certain point of operation. Axial loads deviating from this point are not supported equally across all stages.
