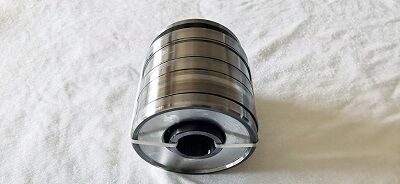

High Precision Roller Bearing T-81684 For Extrusion Machine

High precision roller bearing T-81684 for extrusion machine

Tandem bearing T-81684 is a mechanical component designed with a special structure to enable multiple bearings to work in concert; its core function is to distribute loads and enhance system stability through a tandem arrangement, thereby extending the equipment's service life.

Bearing factory Number: T-81684

Item code:T-81684

Original place:China LuoYang

Lubrication:Oil lubrication

Boundary dimension: 23*90*132mm

Outer diameter D:90mm

Inner diameter d:23mm

The total height:132mm

Tandem stages number:four row stages

Bearing Material:High quality bearing steel

Bearing shaft diameter:0.9” inch size

Bearing outer diameter:3.54”inch size

Bearing width:5.2 inch size

Description:cylindrical roller thrust bearing

UPC/HS code:8482500090

Cage type Nylon or Steel or Brass Standard Cage

Precision grade:P5 P4 grade

 Tandem Bearings Type
1. Basic Type: The bearing adopts elastic spacer to connect the shaft washer,housing washer, roller and cage assembly. The components of this Thrust Bearings are demountable. The user should assemble or dismount the bearing meticulously according to our guide book.
2. Shaft Type: The bearing is made by penetrating an axis through the inner bore of basic type bearing and fastening the bearing to the axis by locking collar/snap ring. The components of this type bearing are inseparable. Shaft type tandem bearing is variational structure of basic type.
3. Multi-stage cylindrical roller thrust bearing (sleeve type) locking collar is made by covering a sleeve to the external of the basic type multi-stage cylindrical roller thrust bearing. It is also inseparable,and is assembled and disassembled as a whole.
