Slewing Bearing Teeth E.1390.30.15.D.1-R Size 1390*1115*105mm
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Lubrication: | Oil Lubrication | Materical: | 50Mn 42CrMo |
|---|---|---|---|
| Heat Treatment: | HB240-280 | Tooth Surface: | HRC55-60 |
| Clearance: | Axial Clerance | Finished Time: | 40 Days |

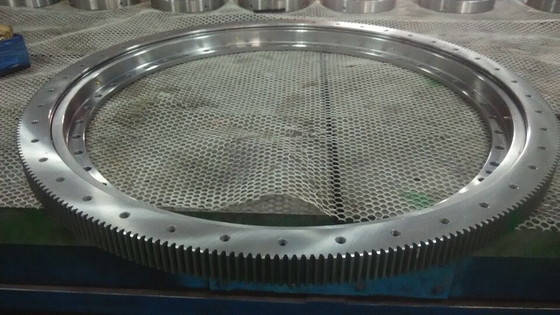

Slewing Bearing teeth E.1390.30.15.D.1-R size 1390*1115*105mm
Slewing bearing E.1390.30.15.D.1-R are widely used for constructions and industrial chineries,such as drive shovels,crane vehicle.
| Slewing bearing type | E.1390.30.15.D.1-R |
| Bearing internal structure | Crossed roller slewing bearing |
| Bearing teeth shape | Spur teeth shape |
| Bearing factory code : | E.1390.30.15.D.1-R |
| Size | 1390x1115x105mm |
| Outer dia: | 1390 mm(54.72 inch size) |
| Inner dia: | 1115mm(43.9 inch size) |
| Height: | 105 mm(4.13 inch size) |
| Weight | 330 Kgs |
| Outer ring hole distribute | equally distribute space |
| Inner ring hole distribute | equal distribute space |
| Outer ring and inner ring material | 42CrMo,50Mn |
| Rolling elements | Cylindrical Roller |
| Lubrication type | Grease lubrication |
| Module m | M=12 |
| Teeth number | 114PCS |
| Press angle | 20 degree |
| Teeth | external teeth |
| drive | By pinion gear teeth |
| Service | Offer assembly drawing and technology knowledge |
