496DBS103T Slewing Ball Bearing Gear Teeth Data
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P0 P6 P5 | Seals Type: | Double Sealed |
|---|---|---|---|
| Material: | 42CrMo,50Mn | Teeth: | Internal Teeth |
| Rolling Element: | Ball | Lubrication: | Grease Oil Hole |
| Load: | Heavy Load | Heat Treatment: | Q+T |
496DBS103T Slewing Ball Bearing Gear Teeth Data
496DBS103T Slewing Ball Bearing Gear Teeth Data

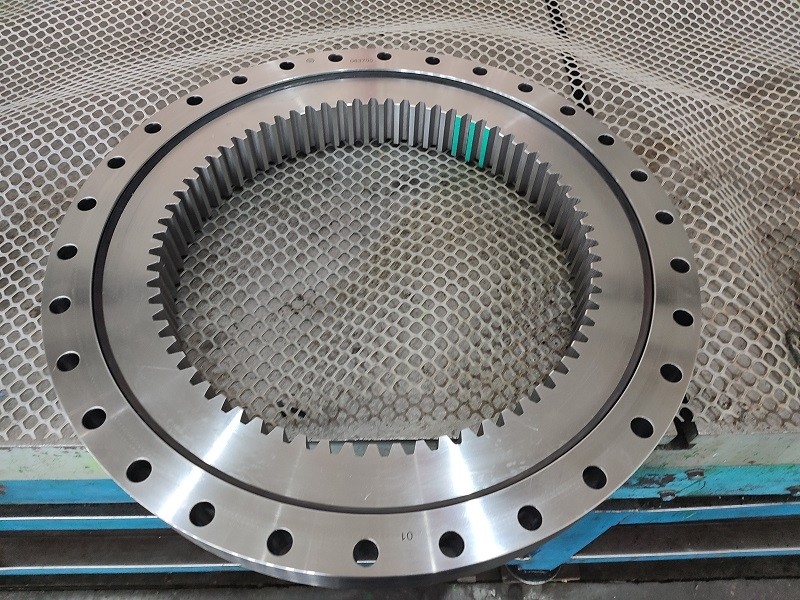

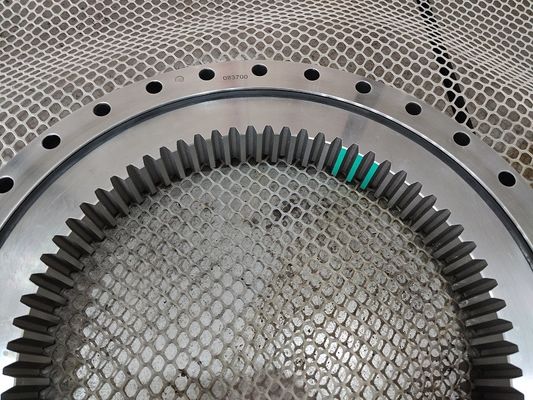

Slewing ball bearing item: 496DBS103T with internal teeth
Structure:Four point contact ball slewing bearing
Bearing teeth shape:Spur teeth shape
Bearing factory code :496DBS103T
Boundary Size:730X495X86mm
Outer dia metric size:730 mm(28.7 inch size)
Inner dia metric size:495mm(19.5inch size)
Height:86 mm(3.5 inch size)
Weight:90 Kgs
Outer ring hole distribute:equally distribute space
Inner ring hole distribute:equal distribute space
Outer ring and inner ring material:42CrMo,50Mn
Rolling elements:ball
Delivery time:45 days
Package: wooden case
Lubrication type:Grease lubrication
Module m:M=12
Teeth number :70PCS
Press angle:20 degree
Teeth :Innternal teeth
drive:By pinion gear teeth
Service:Offer assembly drawing and technology knowledge
