Turntable Ball Bearing MTE-730 With External Teeth 1062*730x82mm
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P0 P6 P5 | Seals Type: | Double Sealed |
|---|---|---|---|
| Material: | 42CrMo,50Mn | Teeth: | External Teeth |
| Rolling Element: | Ball | Lubrication: | Grease Oil Hole |
| Load: | Heavy Load | Heat Treatment: | Q+T |

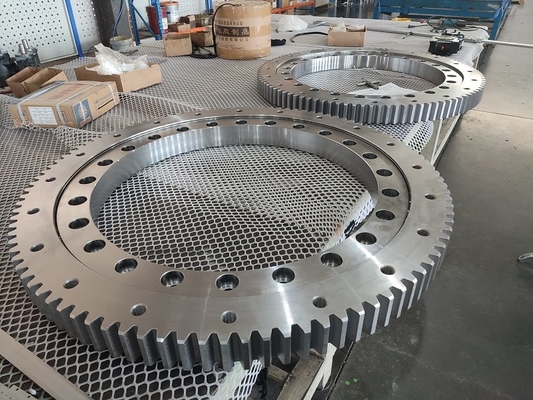

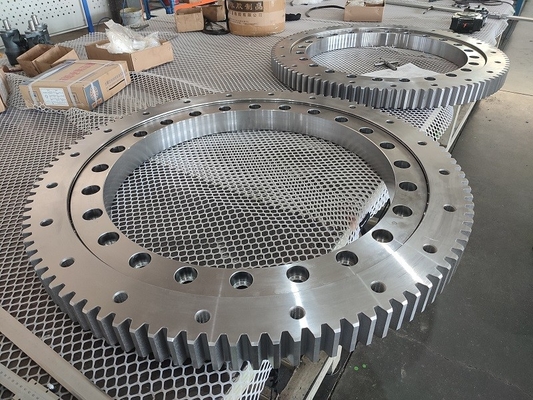

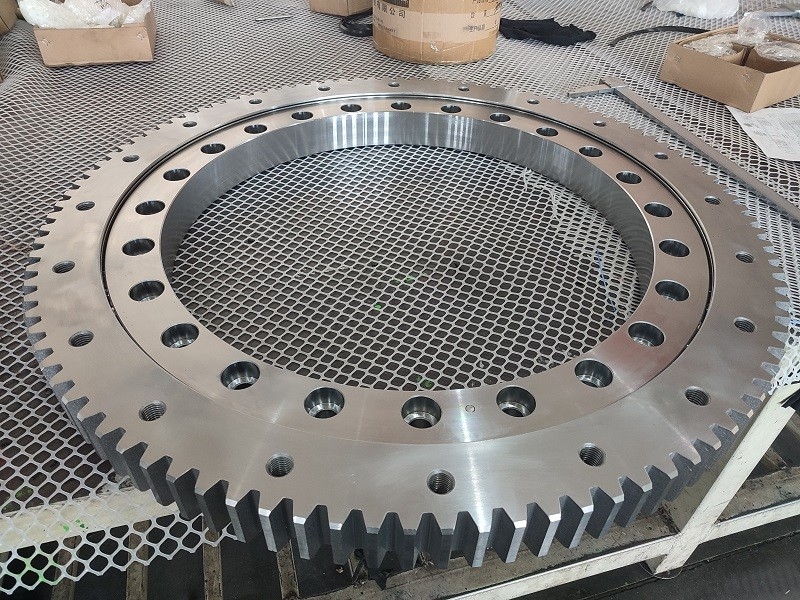

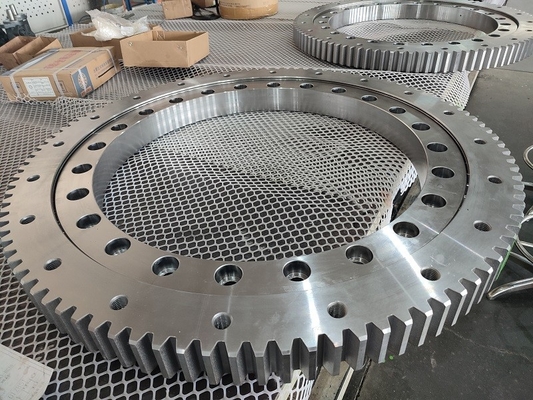

Turntable ball bearing MTE-730 with external teeth 1062*730x82mm
Slewing bearing MTE-730 composed of outer and inner ring and rolling element. It has compact structure, light weight, and four-point contact between steel ball and arc raceway. It can bear axial force, radial force and overturning moment at the same time.
| Slewing bearing type | MTE-730 |
| Bearing internal structure | Four point contact ball slewing bearing |
| Bearing teeth shape | Spur teeth shape |
| Bearing factory code : | 082461 |
| Size | 1062*730x82mm |
| Outer dia: | 1062 mm(41.8 inch size) |
| Inner dia: | 730mm(28 inch size) |
| Height: | 82 mm(3.25 inch size) |
| Weight | 145Kgs |
| Outer ring hole distribute | Not equally distribute space |
| Inner ring hole distribute | equal distribute space |
| Outer ring and inner ring material | 42CrMo,50Mn |
| Rolling elements | ball |
| Lubrication type | Grease lubrication |
| Module m | M=12 |
| Teeth number | 103PCS |
| Press angle | 20 degree |
| Teeth | external teeth |
| drive | By pinion gear teeth |
| Service | Offer assembly drawing and technology knowledge |
Slewing bearing is one of our main products.
1. four point contact ball slewing bearing (no gear, external gear, internal gear);
2. two row ball slewing bearing (no gear, external gear, internal gear);
3. crossed cylindrical roller slewing bearing;(no gear, external gear, internal gear);
4. three row cylindrical roller slewing bearing;(no gear, external gear, internal gear);
5. crossed tapered roller slewing bearing; (no gear, external gear, internal gear);
6. ball and roller combined slewing bearing.(no gear, external gear, internal gear);
