Crossed Roller Slewing Bearing 110.25.823.12 Size 980x714x101mm

Large Image : Crossed Roller Slewing Bearing 110.25.823.12 Size 980x714x101mm

Product Details:

Place of Origin:	China
Brand Name:	JHB or your required
Certification:	ISO9001:2008 or quality certificate
Model Number:	980x714x101mm

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	1-1000USD/negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	30 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Precision Rating:	P0 P6 P5	Seals Type:	Double Sealed
Teeth:	Without Teeth	Service:	Offer Drawing And Calcuation
Structure:	Crossed Roller Bearing	Material:	42CrMo,50Mn
Clearance:	Axial Direction

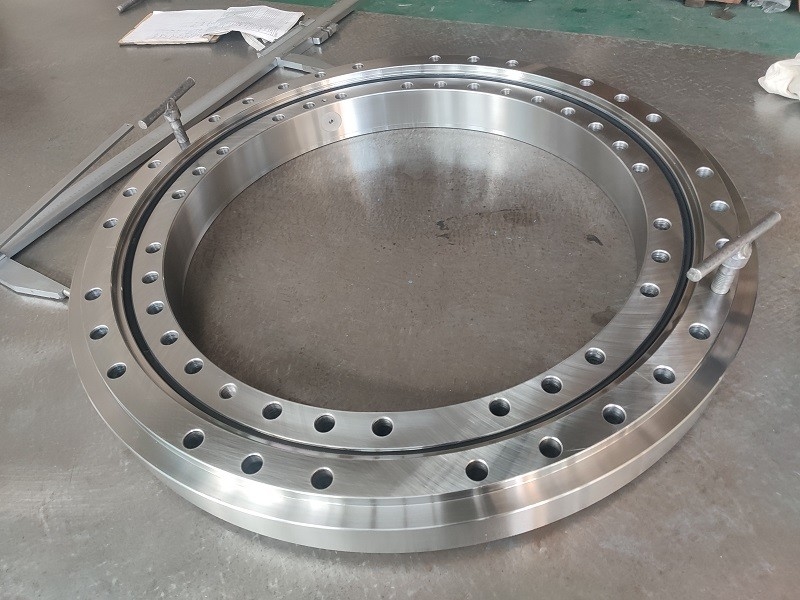

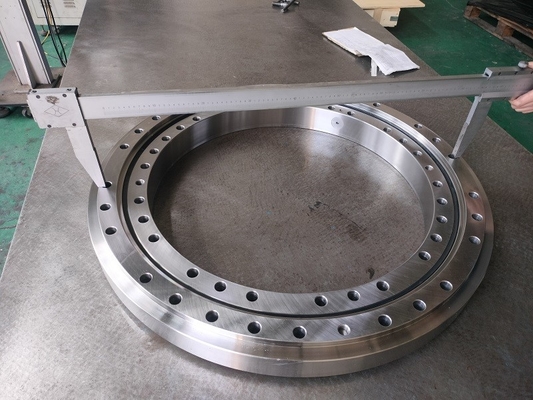

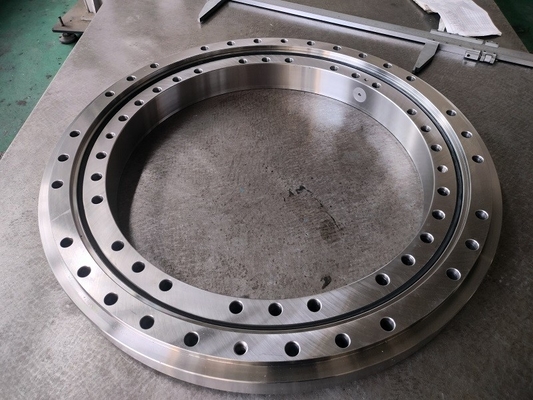

Crossed roller slewing bearing 110.25.823.12 size 980x714x101mm

The bearing 110.25.823.12 belongs to crossed cylindrical roller turntable bearing that will used for oil petroleum equipment rotary table .It can carry axial and radial direction load.It is a slewing bearing consists of an inner ring , an outer ring and rolling elements−balls or cylindrical rollers−that are separated by polyamide spacers. The fixed term with strong bolt.The full boundary size:980X714X101mm .

Slewing Ring Bearing turntable bearing 110.25.823.12Specification:

Structure: Crossed cylindrical roller slewing ring

1.Bearing Dimensions 980*714*101mm

2.The bearing outer diameter Metric size:980mm

3.The bearing inner diameter metric size:714mm

4.The bearing height metric size:101mm

5.The bearing without teeth

6.Lubrication:oil lubrication

7.The bearing outside diameter inch size:38.58”

8.The bearing inside diameter inch size:28.11

9.The bearing total width inch size:3.98

Material quenching and tempering: HB229~269

Raceway case hardening :HRC55~60

Axial clearance: 0.1~0.22mm

The outer ring hole number:28PCS

The inner ring hole number:28pcs

The bearing rolling :Cylindrical roller

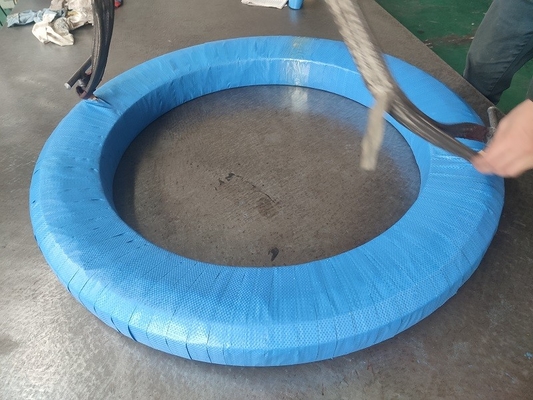

Package Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case.

Material:42CrMo,42CrMo4V,50Mn

Slewing bearings perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing tables
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• stackers
• solar mirrors
• tunnel boring machines
• wind turbines
