Four Point Contact Ball Slewing Bearing With External Gear Teeth 107277680mm

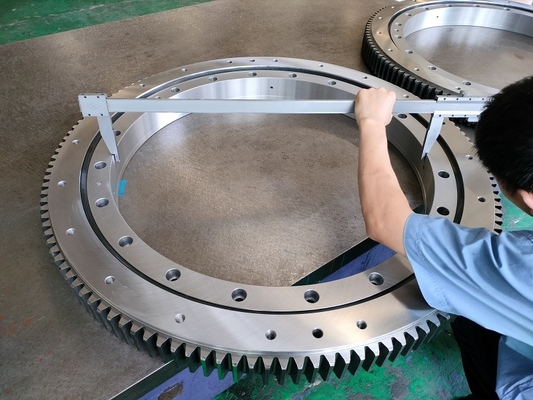

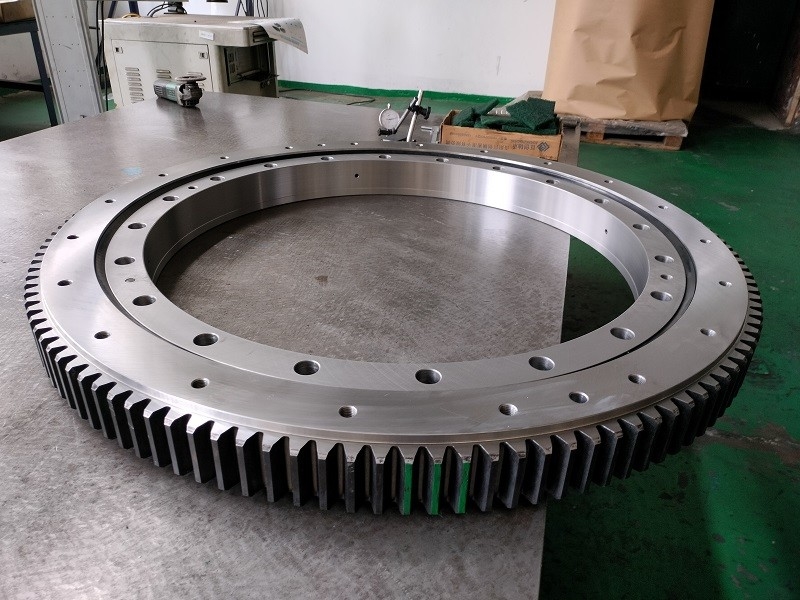

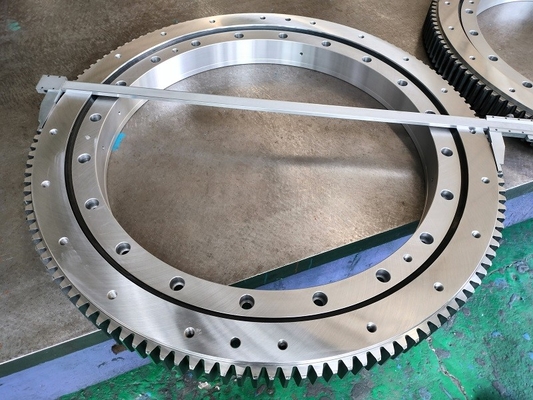

Large Image : Four Point Contact Ball Slewing Bearing With External Gear Teeth 1072*776*80mm

Product Details:

Place of Origin:	China
Brand Name:	JHB or your required
Certification:	Quality certificate
Model Number:	011.30.900

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Price:	1000USD

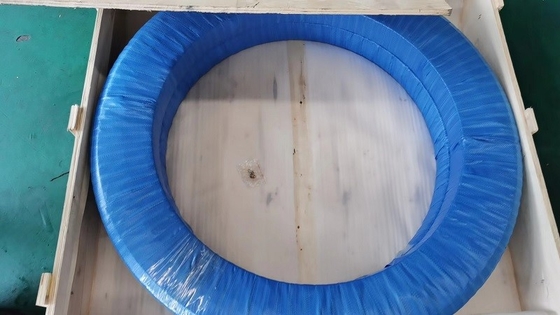

Packaging Details:	Wooden case
Delivery Time:	60 days
Payment Terms:	T/T,L/C, Western Union
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Application:	Food Machinery, Optical Instruments, Medical Equipment CT, Textile Machinery, Printing Machinery
Rolling Element:	Ball	Clearance:	Standard Clearance
Lubrication:	Grease	Teeth:	External Teeth

VRM mill steel plant use the slewing bearing with external teeth 011.30.900

We had offered the slewing bearing 011.30.900 with external teeth for the VRM vertical roller mill equipment.The boundary dimension with 1072x776x80mm , The bearing structure is four point contact ball slewing bearing, the teeth will be queching heat treatment. The teeth precision grade with 10 grade.

tructure: Four point contact ball slewing bearing
Bearing factory items:011.30.900
Bearing old type:011/30/900
Bearing details:
Bearing boundary metric size: 1072X776X80mm
Bearings outer diameter metic :1072mm
Bearing inner diameter metric:776mm
Bearing height meric:80mm
Bearing boundary inch size :42.2x30.55x3.15 inch size
Bearing outer diameter inch size:42.2 inch size
Bearing inner diameter inch size:30.55 inch size
Bearing height inch size:3.15 inch size
Bearing ring material:GCr15SiMn
Bearing ball material:GCr15
Quality standard:GB/T 3077 Rolling bearing quality standard
Time of Delivery time:in Stock, or 3-15 Days
Radial Clearance :C0, C2, C3, C4, C5
Marking Methord:Laser / Mechanical / Electric Corrosion
Transport Package:Plastic Bag+Single Box+Carton+Pallet
Trademark:JHB or OEM avaiable
Oringional :China LuoYang
HS Code:84821090000
