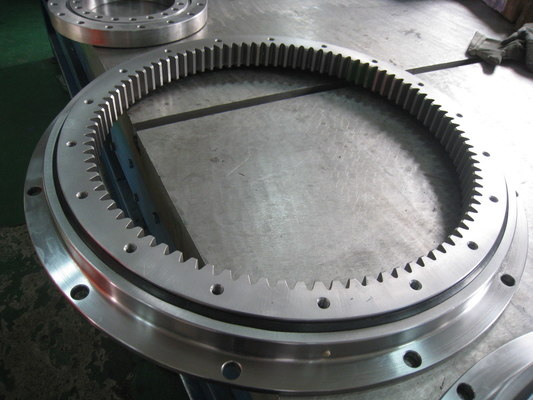

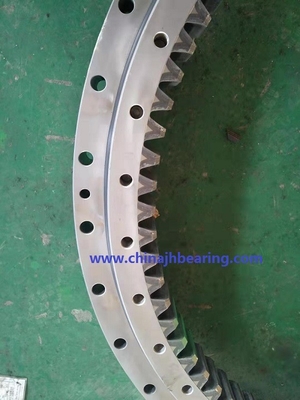

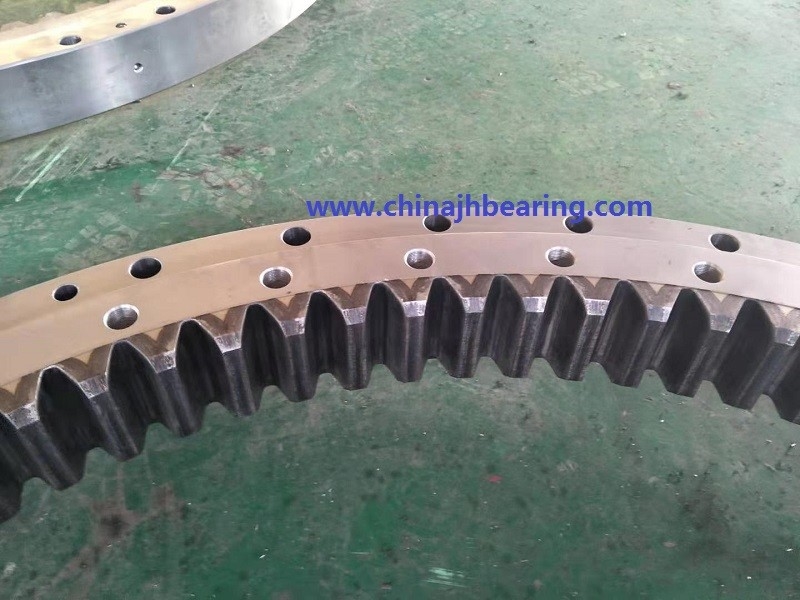

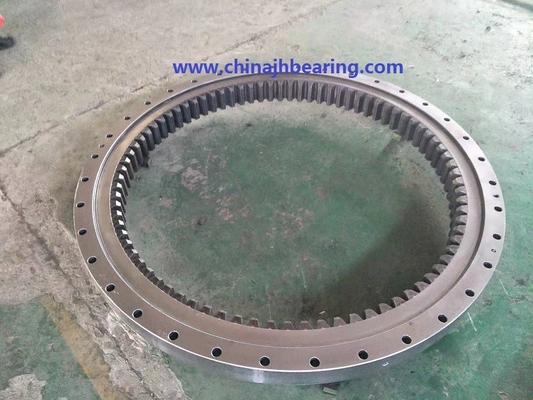

585DBS164Y Slewing ring 585x810x85mm belong to four point contact ball bearing
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | 50Mn | Seal: | Double Seal |
|---|---|---|---|
| Oil Hole: | Yes | Grease: | Grease No.2 |
585DBS164Y Slewing bearing 585x810x85mm belong to four point contact ball bearing
585DBS164Y Slewing bearing specification as following:
| Name | Four point contact ball slewing bearing |
| Type | 585DBS164Y |
| Boundary | 810x585x85mm |
| Outside dia | 810 mm |
| Inner dia | 585 mm |
| height | 85mm |
| gear | With internal gear |
| material | 50Mn |
| Delivery time | 45 days after getting the PO |
| Lubrication | Grease Number 2 |
| Oil hole | available |
| Seal | Double seal |
| Clearance | Axial clearance |
| sample | available |
585DBS164Y Slewing bearing external teeth parameter as follows:
| No of teeth | Z=75 |
| Press angle | A=20 degree |
| Modification coefficient | X=0.5 |
585DBS164Y Slewing bearing manufacture process as follows:
Make steel forging,rough lathe process,finish turning Heat treatment process,rough grinding process and finish grinding process,laser print the type, and assembly process,and keep in warehouse.
585DBS164Y Slewing bearing perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing table
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• stackers
• solar mirrors
• tunnel boring machines
• wind turbines
585DBS164Y Slewing bearing the package: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case
