Precision Angle contact ball bearing 7030C or 7030A5 150x225x35mm, TR TNY Cage

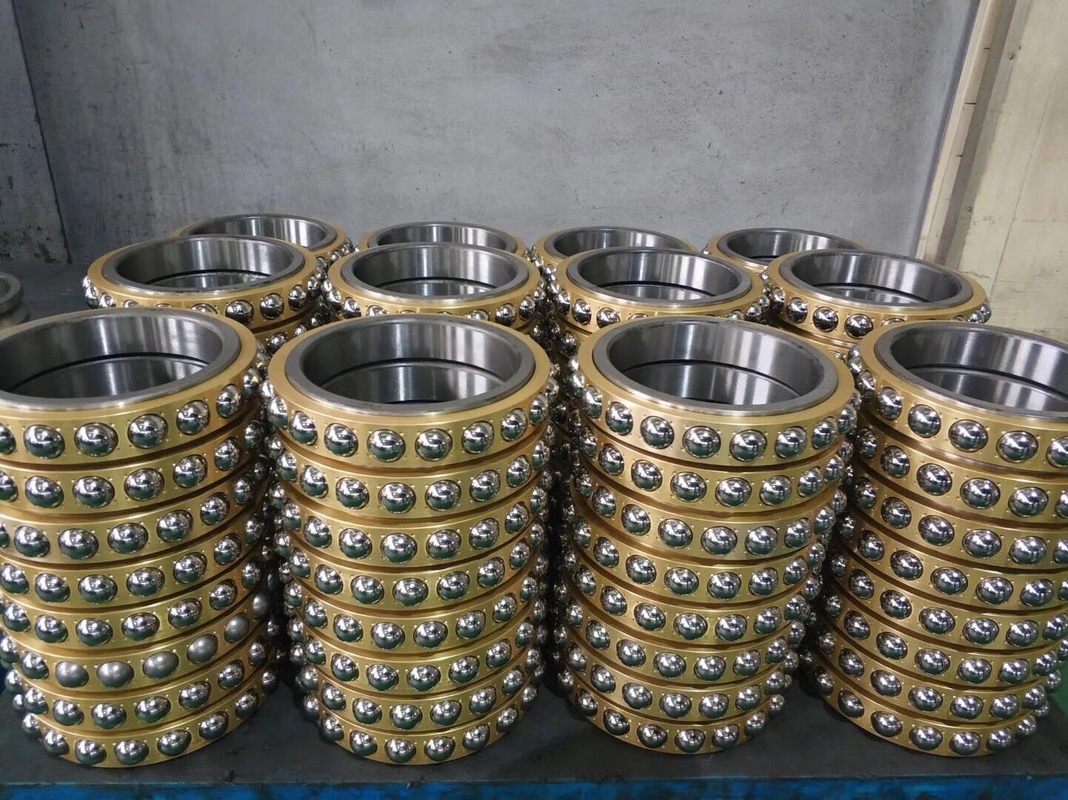

Large Image : Precision Angle contact ball bearing 7030C or 7030A5 150x225x35mm, TR TNY Cage

Product Details:

Place of Origin:	Japan
Brand Name:	NSK or OEM
Certification:	Quality certificate
Model Number:	7030C or 7030A5

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5	Seals Type:	No Seal
Number Of Row:	Single Row	Delivery Time:	In Stocks

Precision Angle contact ball bearing 7030C or 7030A5 150x225x35mm, TR TNY Cage

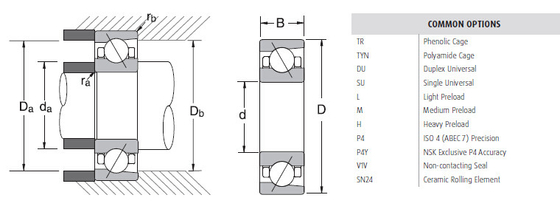

NSK Super precision bearing 7030C or 7030A5 description as following:

Bearing Code	NSK 7030C or 7030A5
Bearing type	Angular Contact ball bearings 7030C or 7030A5
Series	7000 7200 7900
Bore size(dXDxB)	150x225x35mm Remark: 00:10mm 01:12mm 02:15mm 03:17mm 04:20mm 05:25mm 12:60mm 20:100mm
Contact Angle	C:15° A5:25°
Ball material	Blank: steel ball, SN24:Ceramic ball
Cage symbols	TR: phenolic TYN: Polyamide
Combination symbols	DU: Duplex universal SU: Single Universal
Preload Symbols	L:light M:Medium H:Heavy
Precision Class	P4:ISO Class 4(ABEC 7) P4Y:NSK Exclusive P4 accuracy P3:Dimension ISO Class 4,Running accuracy:ISO Class 2 P2:ISO Class 2 (ABEC 9)
Basic load ratings(lbs)	Cr: 34000 lbs Cor: 37900 lbs
Limiting speeds(1000RPM)	Grease: 6.2 RPM Oil: 9.4 RPM
Bearing weight	10.3 lbs

7030C or 7030A5 Ball bearing Applications:

Super Precision Angular Contact bearings 7030C or 7030A5 are specifically designed for rigid, high-speed, high-precision machine tool spindles. Their state-of the- art preload control assures consistent high performance.

Lathes Boring Machinery Grinders Machining Centers Milling Machines Slicing Machines Drilling Machines Gem Cutting Machines

The delivery time: in stock, within one day after getting the order

Package:standard carton or standard wooden case

Shipping term:TNT,FEDEX,DHL UPS Express or your required.

Precision Angle contact ball bearing 7030C or 7030A5 150x225x35mm, TR TNY Cage

Price: if you want to know the price 7030C or 7030A5 ,Please send us by e-mail to lyjh@lyjhbearing.com, we will quote price for you soon.
