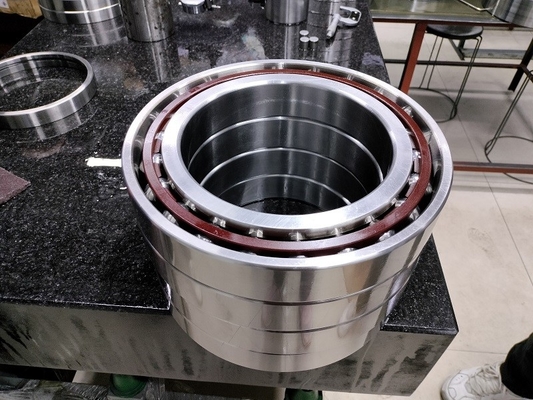

Heavy Load Spindle Ball Bearing 7080ACP5 400*600*90mm

Heavy load spindle ball bearing 7080ACP5 400*600*90mm

Angular contact ball bearings 7080AC,7080C,7080B have higher limit speed, can bear both radial and axial loads, and can also bear pure axial loads. The axial load capacity of angular contact ball bearings depends on the contact angle. Low friction and running temperatures, low noise, and vibration, High running speeds, High quality and performance capabilities for your application.

Bearing No. 7080AC P4 Angular contact ball bearing-spindle ball bearing
Technical Data as following:
The bearing boundary size:400x600x90mm
The bearing outerside diameter:600mm
The bearing inside diameter:400mm
The bearing width:90mm
The bearing grease working speed:750 rpm
The bearing oil working speed:1000rpm
The bearing accuracy grade:P5 P4 P2 grade
Rows Of Balls:single row
The bearing accuracy grade:P5 P4 P2 grade
The delivery time: in stock, within one day after getting the order
The bearing load :
The dynamic load:605KN
The static load:1180KN
Mainly Market
America Europe Asia Middle Africa
Certificate ISO
Bearing Material Chrome Steel
Ball Material G10 Ball and G16
Packing Single Paper Box

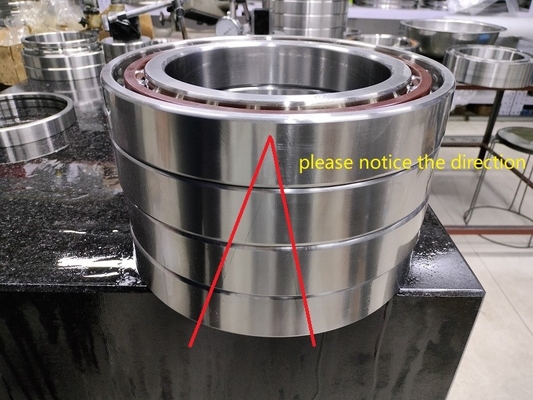

Back to back bearing arrangement
Face to face bearing arrangement
Tandem bearing arrangement

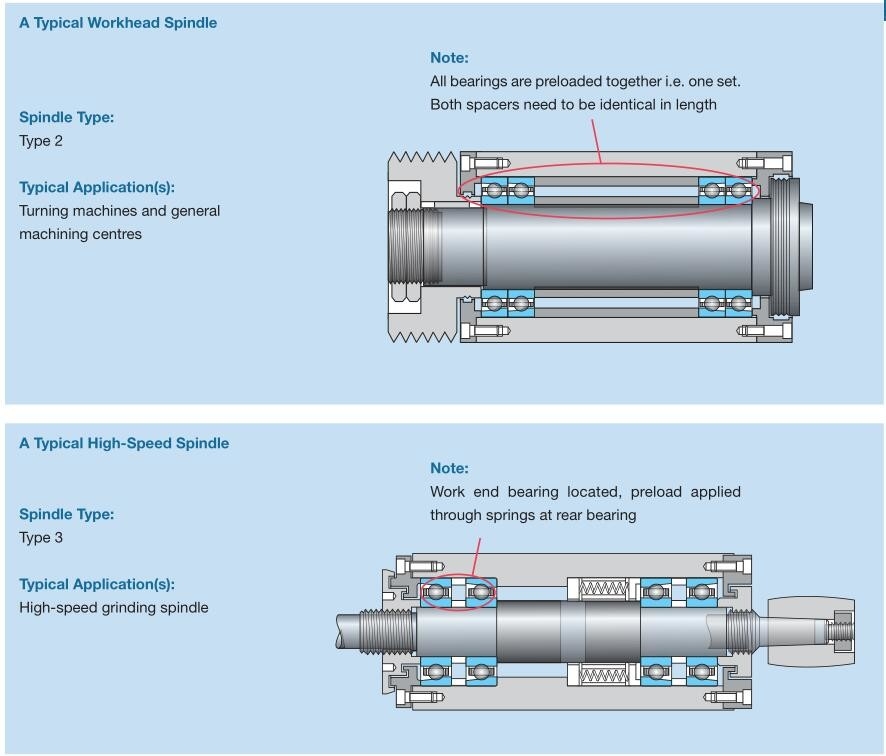

7080 High precision ball bearing Application: machine tools, robotics, printing,meansuring systems,racing car wheels
Requirements:high positioning accuracy, reliable positioning repeatability, ow energy consumption, long service life,easy mounting,increased machine uptime, high power density for compact designs.

 Back to back bearing arrangement
Face to face bearing arrangement
Tandem bearing arrangement

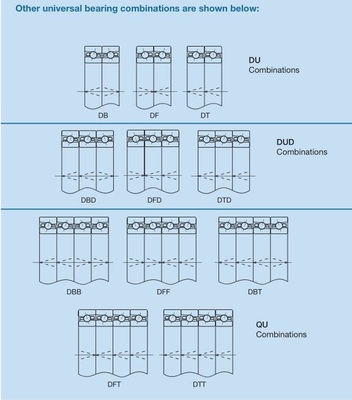

DB:Back-to-back arrangement Designation suffix DB
DF:Designation suffix DB Designation suffix DF (FF)
DT:Tandem arrangement Designation suffix DT (T)
TBT:Back-to-back and tandem arrangement Designation suffix TBT (TD)
TFT:Face-to-face and tandem arrangement Designation suffix TFT (TF)
TT:Tandem arrangement Designation suffix TT (3T)
QBC:Tandem back-to-back arrangement Designation suffix QBC (TDT)
QFC:Tandem face-to-face arrangement Designation suffix QFC (TFT)
QBT:Back-to-back and tandem arrangement Designation suffix QBT (3TD)
QFT:Face-to-face and tandem arrangement Designation suffix QFT (3TF)
QT:Tandem arrangement Designation suffix QT (4T)
