Cylindrical roller bearing 480x700x218 mm NNU4096MAW33 bearing brass cage for Gear drives

All Products

Slewing bearing (624)

Turntable bearing (73)

Cylindrical roller bearing (394)

Rolling mill Bearing (132)

Spherical roller bearing (144)

Tapered roller bearing (103)

Tandem Extruder Bearing (281)

Pinion gear (11)

Machine Parts (115)

crossed roller bearing (214)

YRT Rotary table bearing (39)

Main Spindle Ball Bearing (647)

Thin section ball bearing (157)

Full complement cylindrical roller bearing (172)

Split roller bearing (135)

Spherical roller thrust bearing (102)

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

Cylindrical roller bearing 480x700x218 mm NNU4096MAW33 bearing brass cage for Gear drives

Large Image : Cylindrical roller bearing 480x700x218 mm NNU4096MAW33 bearing brass cage for Gear drives

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	Quality certificate
Model Number:	NNU4096MAW33

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	1-10000USD/negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 10 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Double Row	Clearance:	C1 C2 C0
Material:	GCr15SiMn	Package:	Wooden Case

Cylindrical roller bearing 480x700x218 mm NNU4096MAW33 bearing brass cage for Gear drives

Two-row cylindrical roller bearing NNU4096MAW33 has additional radial load-carrying capability compared to single row cylindrical roller bearing.It designed to ISO Specified interchangeable dimensions. Sold as complete assembly.

The cylindrical roller bearings NNU4096MAW33 has outer rings with solid ribs and lubrications grooves and holes on outer rings, one solid brass cage,used in cement grind mill.

The NNU4096MAW33 cylindrical roller bearing description as follows: Cylindrical roller bearing 480x700x218 mm NNU4096MAW33 bearing brass cage for Gear drives

Name		Double/tow row cylindrical roller bearing NNU4096MAW33
Bearing type		NNU4096MAW33
Dimension		480x700x218 mm
ID(inner diameter)/Bore		480 mm
OD(outer diameter)		700 mm
Width/Height/thickness		218 mm
Load Rating	Static	9730 KN
	Dynamic	5090 KN
Speed Ratings	Oil	350 RPM
	Grease	330 RPM
Weight		275 KGS
Delivery time		In stock, If ex-stock, the manufacture time about 15-20 days
package		Standard export wooden case
Quality standard		I S O 2 4 6/ GB/T 283
Material		GCr15 GCr15SiMn Chrome steel
HS Code		8482500090
Cage Material		Solid brass cage
service		OEM Service
Payment terms		L/C At sight or T/T
Contact		lyjh@lyjhbearing.com sales@lyjhbearing.com
wechat/whatsapp		86 18037970383
Skype		million556

JinHang Precision Bearing mainly export precision cylindrical roller bearing NNU4096MAW33 Bearing and relative products, we have huge stocks for NNU4096MAW33 bearing and relative items, Also if ex-stock, the best deliver time about 15-20 days. we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in NNU4096MAW33 Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly. Thanks for your trust!

Full-Complement (NCF)
The full-complement (NCF) single-row bearings include integral flanges on the inner and outer rings. These bearings also can manage axial loads in one direction and permit small axial
displacements.

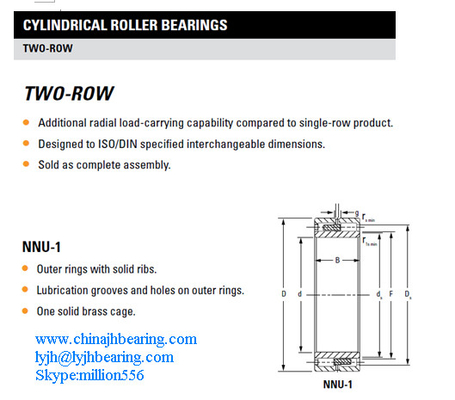

TWO-ROW BEARINGS
Two-row, or double-row, cylindrical bearings offer added radial capacity over tradition one-row types. These bearing types are interchangeable so the dimensions and diameter under the rollers (NNU style) and diameter over the rollers (NN style) are held to an ISO/DIN standard. The standard cage design is a drilled pocket, finger-style retainer
FOUR-ROW BEARINGS
Four-row cylindrical bearings have an extremely high radial load capacity, but no thrust capacity. This bearing type is mostly used in roll neck and work roll applications in the metal rolling industry. Straight and tapered bore designs are available.

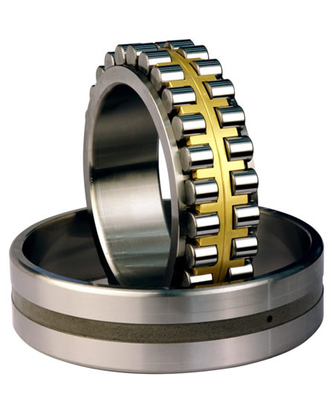

In a cylindrical roller bearing, the rollers and racewaysare in linear contact. Consequently this type of bearing can support a larger radial load than a point-contact ball bearing. Also, its structure is suitable for high-speed operation.
A cylindrical roller bearing used for the main spindle of a machine tool can have either a double- or singlerow configuration, and certain variants have a tapered bore so the radial internal clearance can be adjusted.

cylindrical roller bearings effectively reduce friction and
help transmit power in applications like:
• Power generation
• Oil fields
• Crop shears
• Gear drives
• Hoists
• Metals construction
• Mining
• Aggregate processing
• Pumps
• Rolling mills
• Wheel-end planetaries
• Wind energy
• Other industrial equipment
