Cylindrical roller bearing NU1056M for BILLET EXPANSION PRESS LOADING ARM

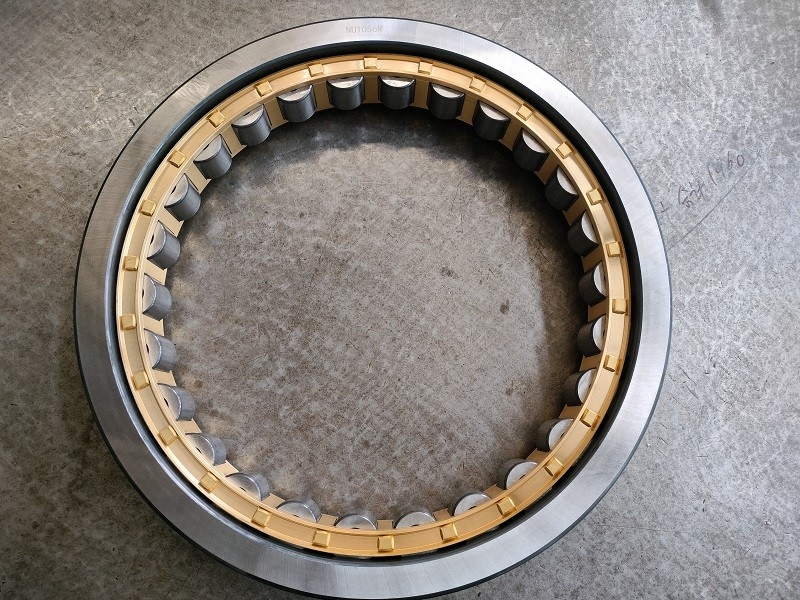

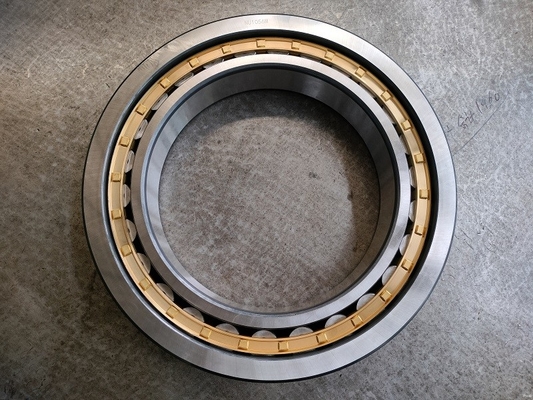

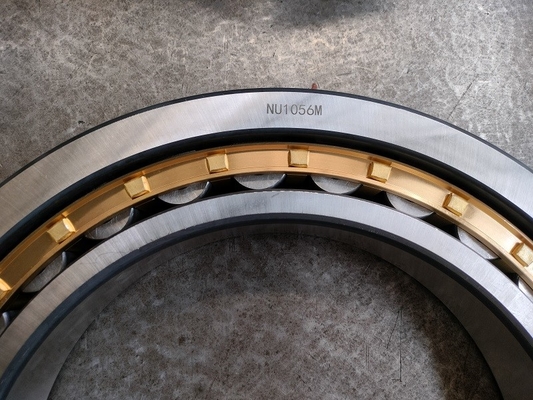

Large Image : Cylindrical roller bearing NU1056M for BILLET EXPANSION PRESS LOADING ARM

Product Details:

Place of Origin:	China
Brand Name:	OEM
Certification:	Quality certificate
Model Number:	NU1056M

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	1000-10000USD
Packaging Details:	Carton or standard export wooden case
Delivery Time:	60 days
Payment Terms:	T/T,L/C, Western Union
Supply Ability:	1000PCS/MONTH

Contact Now

Detailed Product Description

Material:	GCr15SiMn	Cage Material:	Brass/steel
Clearance:	C1 C2 C0 C3 C4	Precision Grade:	P5 P6
Application:	Wire Cable Tubular Strander Machine	Feature:	High Rigidity, High Radial Load Carrying Capacity
Lubrication:	Oil Lubrication	Oil:	Oil Groove And Oil Hole
Original:	LuoYang China	Payment:	T/T .L/C

Cylindrical roller bearing NU1056M for BILLET EXPANSION PRESS LOADING ARM

The single row cylindrical roller bearing NU1056M consist of an inner and outer ring, a roller-retaining cage, and a complement of controlled- contour cylindrical rollers. The bearing nu1056m with high speed rotating and heavy load performance. The full complate size 420*280*65mm with P5 grade accuracy .It matched bearing 6056M for the gearbox of BILLET EXPANSION PRESS LOADING ARM.

NU1056M bearing details as following:

Bearing type	NU1056 M
Boundary	420X280X65mm
Bore diameter:	280mm
Outer diameter	420mm
Height	65mm
Material	Chrome steel
Precision grade	P4 P5 Accuracy
Cage material	Solid brass
Clearance	C1 C2C0 C3
Package	Polybag +Box+Carton
HS code	8482500090
Heat treatment	HRC58-62
Application	BILLET EXPANSION PRESS LOADING ARM. Transmissions large-size generators, machine tool spindles, axle boxes, bent axles of diesel engines, gearboxes Mechanical presses Electrical motors Pumps and compressors Traction motors for railway vehiches Axle boxes for railway vehicles
