NNU4996MAW33 cylindrical roller bearing 480x650x170 mm for Power generation

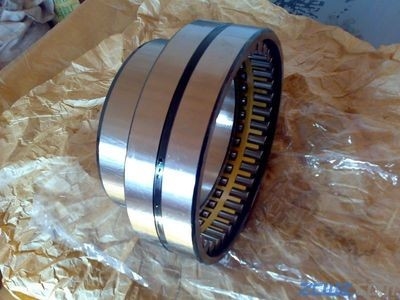

Large Image : NNU4996MAW33 cylindrical roller bearing 480x650x170 mm for Power generation

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	Quality certificate
Model Number:	NNU4996MAW33

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	1-10000USD/negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 10 days
Payment Terms:	T/T,L/C, Western Union
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Double Row	Material:	GCr15SiMn Chrome Steel
Clearance:	C1 C2 C0	Roller Material:	GCr15

NNU4996MAW33 cylindrical roller bearing 480x650x170 mm for Power generation

Name: The bearing NNU4996MAW33 bearing, NNU4996MAW33 cylindrical roller bearing, NNU4996MAW33 double row cylindrical roller bearing, NNU4996MAW33 two row cylindrical roller bearing, NNU4996MAW33 roller bearing description as follows:

NNU4996MAW33 cylindrical roller bearing 480x650x170 mm for Power generation

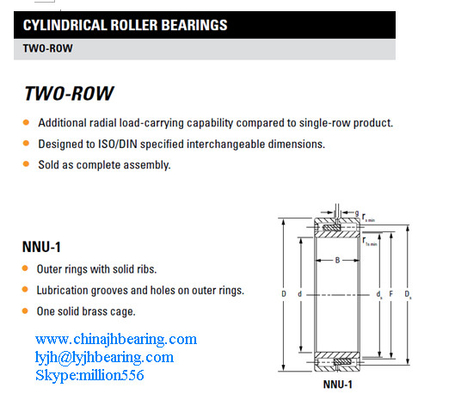

• Structure: The cylindrical roller bearings NNU4996MAW33 has outer rings with solid ribs and lubrications grooves and holes on outer rings, one solid brass cage

• Brand Name: JHB or OEM Required

Dimension:480x650x170 mm

• Bore Size: 480 mm metric size

• Outside Diameter:650 mm metric size

• Height:170 mm metric size

Weight:160 kgs

• Cage:Sold brass cage

• Lubrication:grease or oil

• Bearing mark: Brand+ NNU4996MAW33 Or your requirement

• Place of Origin: LuoYang, China (Mainland)

• Delivery Time: 20-30 days

• Sample:available

• Material: GCr15, GCr15SiMn

• The package: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case

• Payment: T/T or L/C

NNU4996MAW33 bearing Specifications

1. High precision: P5,P6,P0

2. Low noise

3. Long serive life

4. short delivery time

5. OEM service provided

6. Processing with supplied drawings

Name	Double/tow row cylindrical roller bearing NNU4996MAW33
Bearing type	NNU4996MAW33
Dimension	480x650x170 mm
ID(inner diameter)/Bore	480 mm
OD(outer diameter)	650 mm
Width/Height/thickness	170 mm

Radial cylindrical ROLLER BEARING Types and cages
Radial cylindrical roller bearings can offer higher radial load capacity than other bearing designs.
The Company offers a wide range of full complement, one -, two -, and four-row designs
to meet various application requirements.

cylindrical roller bearings effectively reduce friction and
help transmit power in applications like:
• Power generation
• Oil fields
• Crop shears
• Gear drives
• Hoists
• Metals construction
• Mining
• Aggregate processing
• Pumps
• Rolling mills
• Wheel-end planetaries
• Wind energy
• Other industrial equipment
