NNU4934MAW33 two row cylindrical roller bearing 170x230x60mm,brass cage

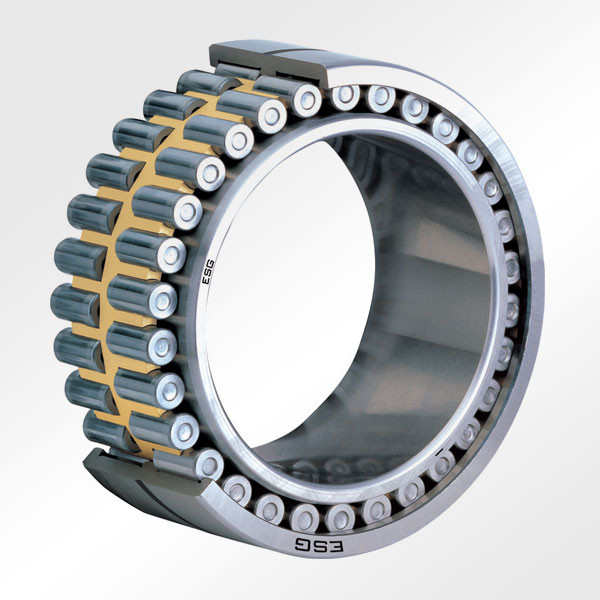

Large Image : NNU4934MAW33 two row cylindrical roller bearing 170x230x60mm,brass cage

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	Quality certificate
Model Number:	NNU4934MAW33

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	1-10000USD/negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 10 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Double Row

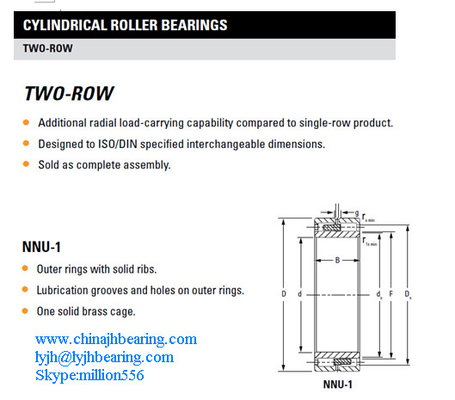

Two-row cylindrical roller bearing NNU4934MAW33 has additional radial load-carrying capability compared to single row cylindrical roller bearing.It designed to ISO Specified interchangeable dimensions. Sold as complete assembly.

The cylindrical roller bearings NNU4934MAW33 has outer rings with solid ribs and lubrications grooves and holes on outer rings, one solid brass cage

The NNU4934MAW33cylindrical roller bearing description as follows: NNU4934MAW33 two row cylindrical roller bearing 170x230x60mm,brass cage

Name		Double/tow row cylindrical roller bearing NNU4934MAW33
Bearing type		NNU4934MAW33
Dimension		170x230x60 mm
ID(inner diameter)/Bore		170 mm
OD(outer diameter)		230 mm
Width/Height/thickness		60 mm
Load Rating	Static	696 KN
	Dynamic	376 KN
Speed Ratings	Oil	1900 RPM
	Grease	1600 RPM
Weight		7 KGS
Delivery time		In stock, If ex-stock, the manufacture time about 15-20 days
package		Standard export wooden case
Quality standard		I S O 2 4 6/ GB/T 283
Material		GCr15 GCr15SiMn
HS Code		8482500090

JinHang Precision Bearing mainly export precision cylindrical roller bearing Timken NNU4934MAW33 Bearing and relative products, we have huge stocks for NNU4934MAW33 bearing and relative items, Also if ex-stock, the best deliver time about 15-20 days. we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in NNU4934MAW33 Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly. Thanks for your trust!
