NU 228 ECM SKF single row cylindrical roller bearing dimension details,140x20x42 mm

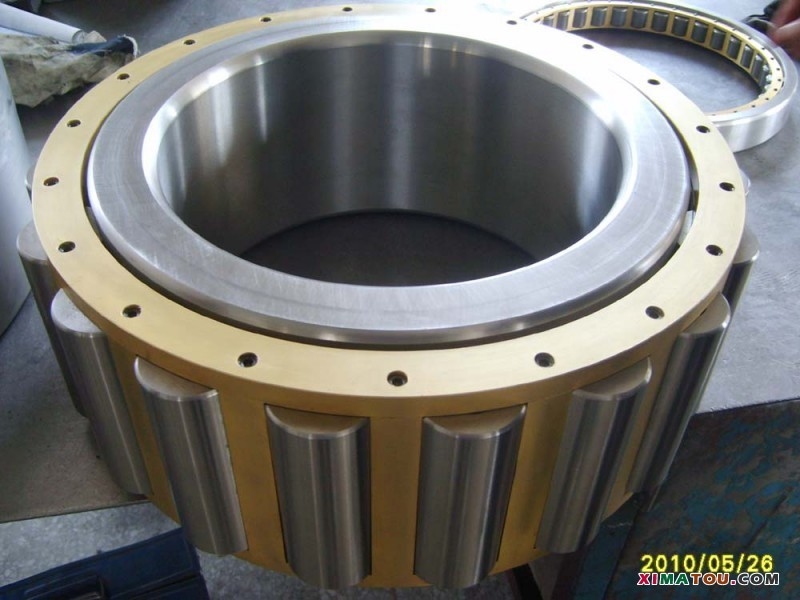

Large Image : NU 228 ECM SKF single row cylindrical roller bearing dimension details,140x20x42 mm

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or Quality Certificate
Model Number:	NU 228 ECM

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 15- 20 days
Payment Terms:	T/T,L/C
Supply Ability:	500 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Single Row

NU 228 ECM SKF single row cylindrical roller bearing dimension details,140x20x42 mm

NU 228 ECM Cylindrical roller bearing one bearing
NU 228 ECM Cylindrical roller bearing and removable inner ring, this is a popular size that could be used in many application that uses this size 140x250x42 mm, Bearing is made of GCr15 GCr15SiMn chrome steel.

Products name	Singler row cylindrical Roller Bearings NU 228 ECM
Brand name	JHB or your requirment
Dimension (dXDxT)	140X250X42 mm
Basic load ratings(KN)	Dyn(C):450 KN
Basic load ratings(KN)	Stat(C0):510 KN
Inner ring and outer ring material	GCr15, GCr15SiMn Chrome steel
Cage material	steel or brass cage
Precision	P0 P6 P5
Sealing	Open
Quality standard	ISO9001:2008 standard
Service	OEM service
Delivery date	Normally ready goods and stock within 20 days
Payment terms	A:100% L/C at sight B: 30% T/T in advance .70% against copy of B/L
Contact	lyjh@lyjhbearing.com sales@lyjhbearing.com
MSN	lyjhbearing@hotmail.com
Skype	Million556

The SKF single row cylindrical roller bearing product list as follows:

Basic Dimensions(mm)			Bearing Designations	Bearing ratings (KN)		Weight
d	D	B		Cr	Cor	(KGS)
140	210	33	NU 1028 ML	165	224	4
140	250	42	NU 228 ECM	450	510	8.5

Meanwhile,we can supply the bearing as follows:

NU 228 ECM SKF single row cylindrical roller bearing dimension details,140x20x42 mm

Boundary dimensions						Designations		Mass	Limiting speeds
mm						Current	Original	kg	r/min
d	D	B	Fw	Ew	rmin				Grease	Oil
140	190	24	-	178	1.5	N1928	-	2	3200	3800
140	190	24	154	-	1.5	NU1928	-	1.98	3200	3800
140	210	33	158	-	1.1	NU1028	32128	3.87	2400	3000
140	250	68	169	-	3	NU2228	-	14.7	2000	2600
140	250	68	169	-	3	NJ 2228	42528	17	2000	2600
140	300	62	-	260	4	NF 328	12328	21.8	1800	2200
140	300	62	-	260	4	N 328	2328	21.9	1800	2200
140	300	62	180	-	4	NU 328	32328	22.2	1800	2200
140	300	62	180	-	4	NJ 328	42328	22.6	1800	2200
140	300	102	-	260	4	N 2328	2628	34.6	1800	2200
140	300	102	180	-	4	NU 2328E	32628	36	1800	2200
140	360	82	-	304	5	N428	-	47	1400	1800
140	360	82	196	-	5	NU 428	32428	48	1400	1800
140	360	82	196	-	5	NJ 428	42428	48.8	1400	1800
