NUP 324 ECP Single row cylindrical roller bearing ,120x260x55 mm, Chrome steel material

Large Image : NUP 324 ECP Single row cylindrical roller bearing ,120x260x55 mm, Chrome steel material

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or Quality Certificate
Model Number:	NUP 324 ECP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 15- 20 days
Payment Terms:	T/T,L/C
Supply Ability:	500 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Single Row

NUP 324 ECP Single row cylindrical roller bearing ,120x260x55 mm, Chrome steel material

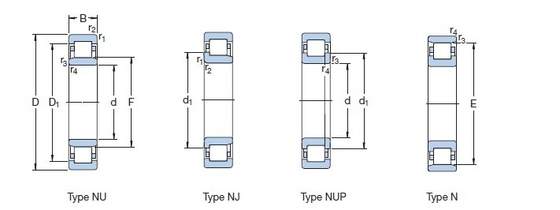

NUP 324 ECP Cylindrical roller bearings, single row, NUP design

NUP 324 ECP Cylindrical roller bearing and removable inner ring, this is a popular size that could be used in many application that uses this size 120x260x55 mm, Bearing is made of GCr15 GCr15SiMn chrome steel.

Products name	Singler row cylindrical Roller Bearings NUP 324 ECP
Brand name	JHB or your requirment
Dimension (dXDxT)	120X260X55 mm
Basic load ratings(KN)	Dyn(C):610 KN
Basic load ratings(KN)	Stat(C0):620 KN
Inner ring and outer ring material	GCr15, GCr15SiMn Chrome steel
Cage material	steel or brass cage
Precision	P0 P6 P5
Sealing	Open
Quality standard	ISO9001:2008 standard
Service	OEM service
Delivery date	Normally ready goods and stock within 20 days
Payment terms	A:100% L/C at sight B: 30% T/T in advance .70% against copy of B/L
Contact	lyjh@lyjhbearing.com sales@lyjhbearing.com
MSN	lyjhbearing@hotmail.com
Skype	Million556

The cylindrical roller bearing product list as follows:

Basic Dimensions(mm)			Bearing Designations	Bearing ratings (KN)		Weight
d	D	B		Cr	Cor	(KGS)
120	180	28	NU 1024 ML	134	183	2.45
120	215	40	NU 224 ECP	390	430	5.7
120	215	40	NJ 224 ECP	390	430	5.8
120	215	40	NUP 224ECJ	390	430	6
120	215	40	N 224 ECP	390	430	5.75
120	215	58	NU 2224ECP	520	630	8.3
120	215	58	NJ 2224ECP	520	630	8.5
120	215	58	NUP 2224 ECP	520	630	9
120	260	55	NU 324 ECP	610	620	13.3
120	260	55	NJ 324 ECP	610	620	13.5
120	260	55	NUP 324 ECP	610	620	13.7

Meanwhile,we can supply the bearing as follows:

NUP 324 ECP Single row cylindrical roller bearing ,120x260x55 mm, Chrome steel material

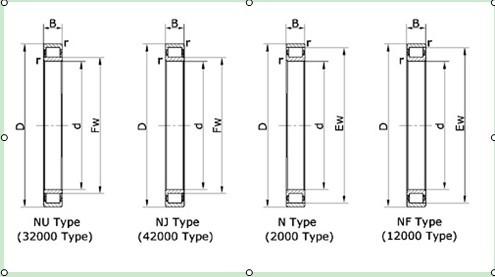

Boundary dimensions						Designations		Mass	Limiting speeds
mm						Current	Original	kg	r/min
d	D	B	Fw	Ew	rmin				Grease	Oil
120	180	28	135	-	2	NU 1024M	32124H	2.45	3400	4000
	180	28	135	-	2	NJ 1024	42124	3.09	3400	4000
	215	40	-	191.5	2.1	N 224E	2224H	6.2	2400	3000
	215	40	143.5	-	2.1	NU 224E	32224H	5.75	2400	3000
	215	40	143.5	-	2.1	NJ 224E	42224H	6.2	2400	3000
	240	80	150	-	3	NJ 624	42724	17.8	2400	3200
	260	86	154	-	3	NU 2324E	32624	23.8	1900	2400
	310	72	-	260	5	N 424	2424	29	1900	2400
	310	72	170	-	5	NU 424	32424	29.1	1900	2400
	310	72	170	-	5	NJ 424	42424	29.1	1900	2400
