KA045AR0 Kaydon inch size angular contact ball bearing

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

KA045AR0 Kaydon inch size angular contact ball bearing

China KA045AR0 Kaydon inch size angular contact ball bearing supplier

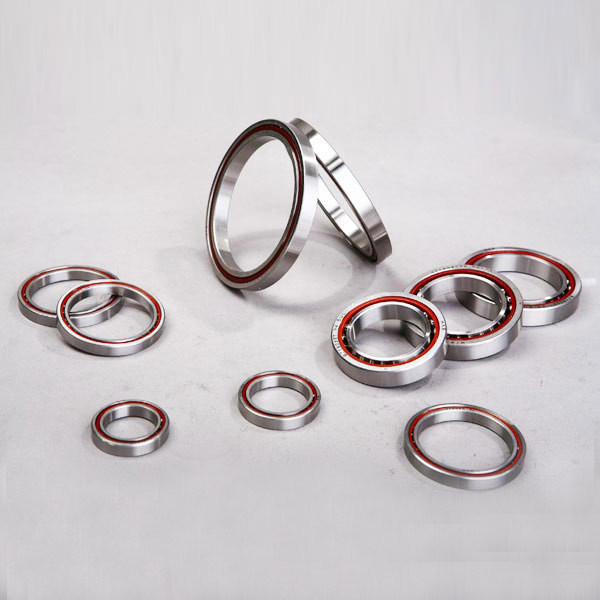

Large Image :  KA045AR0 Kaydon inch size angular contact ball bearing

Product Details:

Place of Origin: China
Brand Name: JHB
Certification: Quality certificate
Model Number: KA045AR0

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 1-10000USD/negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: 20-30 days
Payment Terms: T/T,L/C, Prepaid 30%, the rest before shipping
Supply Ability: 10000 pcs/month
Detailed Product Description
Precision Rating: P4 P5 P6 Seals Type: Open Or Seal
Number Of Row: Single Row



Description:KAYDON Thin wall bearing KA series
Type:Angular contact ball bearing: KA045AR0
Dimension: 4.5X5X0.25 in/Inch size
ID(inner diameter /Bore:4.5in
OD(outer diameter): 5 in
Total Width/Height/thickness(C):0.25 in


Basic Dimensions(in)

Bearing Designations

Bearing ratings (lbs)

Weight(lbs)



d

D

C

Cr

Cor

Ca

Coa



4.5

5

0.25

KA045AR0

1660

637

4810

1580

0.21





The KAYDON Angular contact ball bearing   KA045ARO, this is thin section or slim bearing , the thin section bearing have high precision,and very quite, high load. The slim bearing including three kinds design, including deep groove ball bearing, four point contact ball bearing, angular contact ball bearing, and the space is very little, Most of cross section is square,even if the large shaft diameter or bearing bore, the cross section keep original. The bearing .
 If you have just landed here, this Bearing    KA045AR0 , You can call us or send enquiry, we would give you the prices, packing,  and more detailed information on the KA045AR0   bearing .

We cooperate with DHL,TNT,FEDEX,UPS,EMS, and shipping agency etc.They guarantee to meet your needs in terms of time and money, , YES, we ship worldwide. We had a lot of bearing in our warehouse, if we have no stock, the manufacture time:20-30 days.
The Bearing   KA045AR0  inner ring and outer ring ball forging material:AISI 52100 Type steel vacuum degassed, AISI440C Stainless steel.
 The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.
The package: standard export wooden case or carton boxes.

The  Angular contact ball bearing   KA045AR0   applicantion:Aerospace and astronomy instrumentation,Fixturing and workholding equipment,Food processing equipment, glassworking equipment, index and rotary tables, packaging equipment,machine tools, medical devices,optical scanning equipment, tire making equipment, radar,satellite and communication equipment, robotics, textile machinery,tube and pipe cutting machines, semiconductor manufacturing equipment, sorting equipment and so on.
