KA030AR0 Thin secition angular contact ball bearing, the material AISI 52100 STeel

Description:KAYDON Thin wall bearing KA series

Type:Angular contact ball bearing: KA030AR0

Dimension: 3X3X0.25 in/Inch size

ID(inner diameter /Bore:3 in

OD(outer diameter): 3.5 in

Total Width/Height/thickness(C):0.25 in



Basic Dimensions(in)			Bearing Designations	Bearing ratings (lbs)				Weight(lbs)
d	D	C		Cr	Cor	Ca	Coa
3	3.5	0.25	KA030AR0	1140	507	3290	1230	0.14

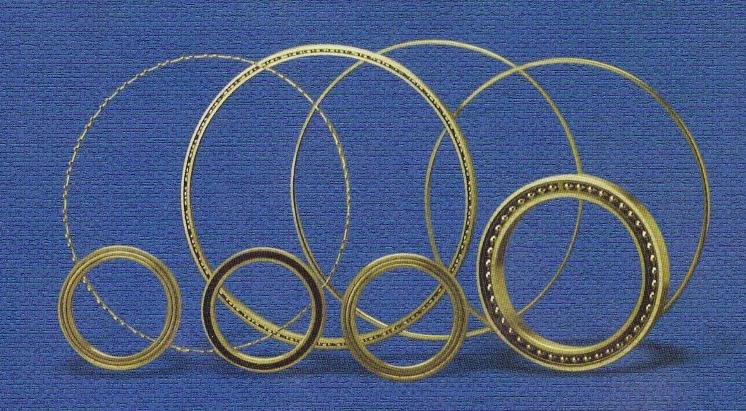

The KAYDON Angular contact ball bearing   KA030ARO, this is thin section or slim bearing , the thin section bearing have high precision,and very quite, high load. The slim bearing including three kinds design, including deep groove ball bearing, four point contact ball bearing, angular contact ball bearing, and the space is very little, Most of cross section is square,even if the large shaft diameter or bearing bore, the cross section keep original. The bearing .

 If you have just landed here, this Bearing    KA030AR0 , You can call us or send enquiry, we would give you the prices, packing,  and more detailed information on the KA030AR0   bearing .



We cooperate with DHL,TNT,FEDEX,UPS,EMS, and shipping agency etc.They guarantee to meet your needs in terms of time and money, , YES, we ship worldwide. We had a lot of bearing in our warehouse, if we have no stock, the manufacture time:20-30 days.

The Bearing   KA030AR0  inner ring and outer ring ball forging material:AISI 52100 Type steel vacuum degassed, AISI440C Stainless steel.

 The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.

The package: standard export wooden case or carton boxes.



The  Angular contact ball bearing   KA030AR0   applicantion:Aerospace and astronomy instrumentation,Fixturing and workholding equipment,Food processing equipment, glassworking equipment, index and rotary tables, packaging equipment,machine tools, medical devices,optical scanning equipment, tire making equipment, radar,satellite and communication equipment, robotics, textile machinery,tube and pipe cutting machines, semiconductor manufacturing equipment, sorting equipment and so on.
