01EB70M, 01EB70M bearing, 01EB70M split roller bearing
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P4 P5 P6 | Item: | T-53507 |
|---|---|---|---|
| Number Of Row: | Six Row | Structure: | Cylindrical Roller Thrust Bearings |
| Lubrication: | Oil Lubrication |
Description:Cooper Split roller bearing
Type: Split roller bearing 01EB70M
Dimension: 70x133.35x61.2 mm/Metic
ID(inner diameter)/Bore:70mm
OD(outer diameter):133.35 mm
Inner ring Width/Height/thickness(C)::61.2 mm
Outer ring width/Height/thickness(B):31.8 mm
|
Basic Dimensions(mm) |
Bearing Designations |
Bearing ratings (KN) |
Max Speed |
Weight |
|||||
|
d |
D |
C |
B |
Cr |
Cor |
Ca |
rpm |
(KGS) |
|
|
70 |
133.35 |
61.2 |
31.8 |
01EB70M |
166 |
197 |
10.8 |
3310 |
2.5 |
The Cooper Split cylindrical roller bearing 01EB70M are intended primarily for bearing arrangements which are difficult to access or for cranked shafts. It is advantageous to use them in all cases where the maintenance or replacement of non-split bearings would require considerable extra time-consuming effort and would cause long and expensive or even inadmissible machine downtime. .
If you have just landed here, this Bearing 01EB70M, You can call us or send enquiry, we would give you the prices, packing, and more detailed information on the 01EB70M bearing .
We cooperate with DHL,TNT,FEDEX,UPS,EMS, and shipping agency etc.They guarantee to meet your needs in terms of time and money, , YES, we ship worldwide. We had a lot of bearing in our warehouse, if we have no stock, the manufacture time:10-20 days.
The Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel
The Inner ring and outer ring hardness: 58-62HRC
The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.

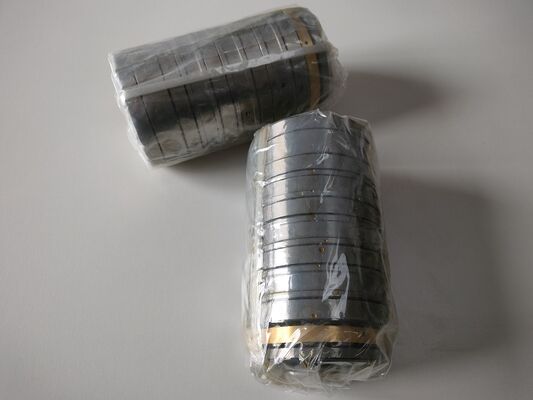

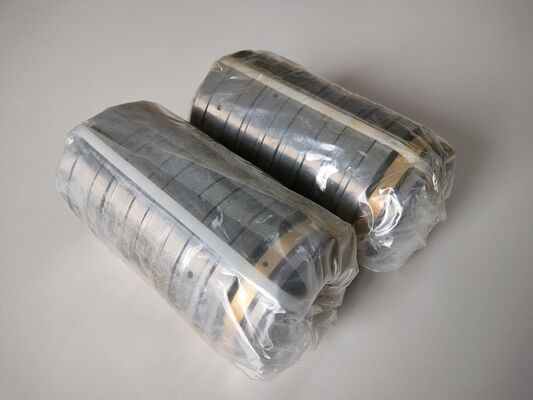

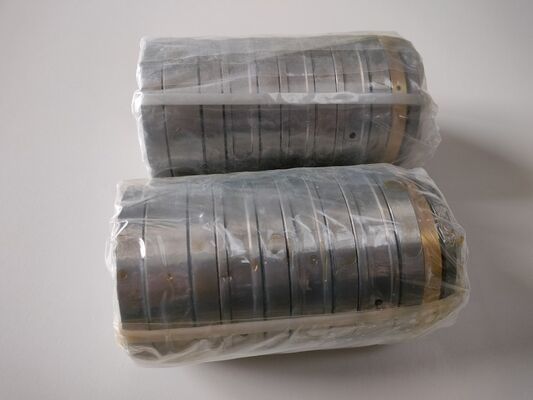

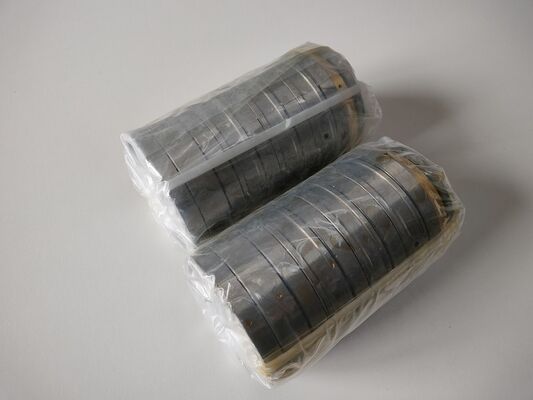

The package: standard export wooden case or carton boxes.
The Cooper Split cylindrical roller bearing 01EB70M applicantion:Bucket wheel escavators and reclaimers, Winch drums and rope shearves Screw conveyors, Bucket elevators and conveying belts, Line shafting, Continues casters, Marine propeller shafting, Crankshafts, Mixers and stirrers, Mills and crusher, Sinter plants and rotary kilns, Fans and blower, Dedusting equipment, Dirve and Line shafts
