NCF18/560V full complement single row cylindrical roller bearing 560x680x56mm

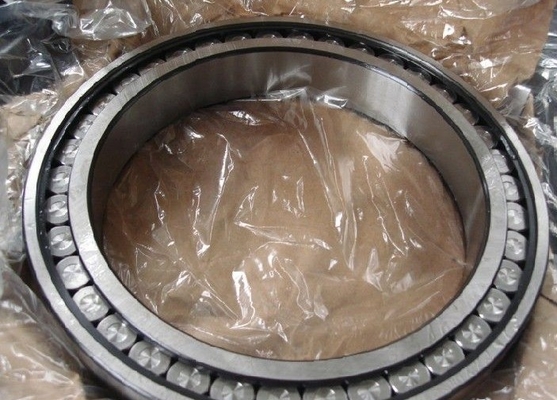

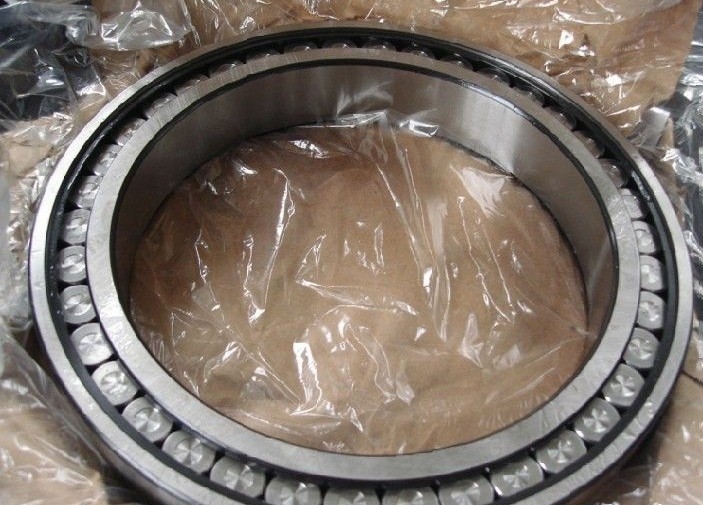

Large Image : NCF18/560V full complement single row cylindrical roller bearing 560x680x56mm

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	Quality certificate
Model Number:	NCF18/560V

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	1-10000USD/negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 10 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Single Row

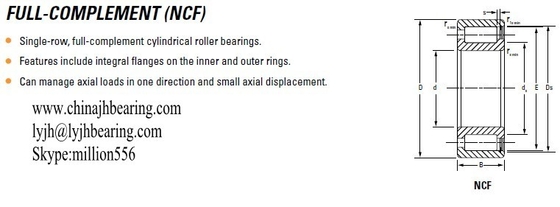

The NCF18/560V full-complement (NCF) single-row bearings include integral flanges on the inner and outer rings. These bearings also can manage axial loads in one direction and permit small axial displacements.

The NCF18/560V cylindrical roller bearing description as follows:

Name		Full complement single row cylindrical roller bearing NCF18/560V
Bearing type		NCF18/560V
Dimension		560x680x56mm
ID(inner diameter)/Bore		560 mm
OD(outer diameter)		680 mm
Width/Height/thickness		56 mm
Load Rating	Static	2460 KN
	Dynamic	1130 KN
Speed Ratings	Oil	230 RPM
	Grease	190 RPM
Weight		39 KGS
Delivery time		In stock, If ex-stock, the manufacture time about 15-20 days
package		standard export wooden case
Quality standard		I S O 2 4 6/ GB/T 283
Material		GCr15 GCr15SiMn chorme steel
HS Code		8482500090

JinHang Precision Bearing mainly export precision cylindrical roller bearing Timken NCF18/560V Bearing and relative products, we have huge stocks for NCF18/560V bearing and relative items, Also if ex-stock, the best deliver time about 15-20 days. we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in NCF18/560V Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly. Thanks for your trust!
