SL182948 cylindrical roller bearing 240x320x48 mm gearbox use

Large Image : SL182948 cylindrical roller bearing 240x320x48 mm gearbox use

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or quality certificate
Model Number:	SL182948

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Price:	100-1000USD
Packaging Details:	Standard export wooden case
Delivery Time:	in stock or ex-stock
Payment Terms:	T/T L/C
Supply Ability:	1000PCS/month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	Opened
Number Of Row:	Single Row	Structure:	Roller
Size:	240x320x48 Mm	Material:	GCr15SiMn

SL182948 cylindrical roller bearing 240x320x48 mm gearbox use

Cylindrical roller bearings SL182948 semi-locating bearing, full complement cylindrical roller set,

the dimension: 240x320x48 mm

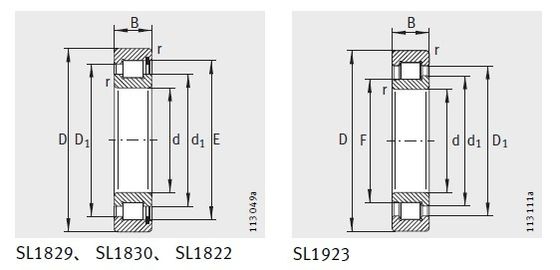

SL182948 bearing dimension details and rough drawing:

SL182948 cylindrical roller bearing 240x320x48 mm gearbox use

description	Full complete single row cylindrical roller bearing
Bearing type	INA/FAG Code SL182948

Basic dimension(mm)	d	240 mm
	D	320mm
	B	48 mm
	r min	2.1 mm
	rl	—
	s	3 mm
	E	303.7 mm
	F	----
	D1	294.4 mm
	d1	267.5 mm
	B1	---
	B2	—
	B3	—
Basic load rating	Cr(KN)	600 KN
Basic load rating	Cor(KN)	1120 KN
Limiting speed	nG(rpm)	1120 1/min
	nB(rpm)	750 1/min
Weight		10.6 kgs

SL182948 cylindrical roller bearing 240x320x48 mm gearbox use

The bearing SL182948 outer and inner ring material and hardness:

The Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel

The Inner ring and outer ring hardness: 58-62HRC

The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.

SL182948 full complete cylindrical roller bearing application:
crane sheaves,Gear box producers,Transmission motor producers, Steel industry, Producers for construction equipment

Forest technology, Synthetic material industry, Machine tool producers, Producers of measuring devices and dividing units

Rotary table manufactures, Maritime industry, Metal forming technology, Crane sheave on the sea, Deck crane

Transmission, Planetary speed reducer, and so on.

If you want to know bearing SL182948 more, Please send us by e-mail or call us, We will send the more details. Thanks.
