Precision Rating: | P5 P6 P0 | Seals Type: | Opened |
---|---|---|---|
Number Of Row: | Single Row |
Cylindrical roller bearings SL182924 semi-locating bearing, full complement cylindrical roller set,
the dimension: 120x165x27 mm
Full complement cylindrical roller bearings inculde single- row full complement cylindrical roller bearings and doublerow full complement cylindrical roller bearings.
SL182924 Full complement cylindrical roller bearings have no cage,full of rollers, the loading capacity is higher than bearings with cage,but the high speed performance is worse.
Single and double rows open bearings are primarily used in general mechanical equipment required lower speed and heavy loads. Double row closed bearings are generally used in wire rope pulleys of cranes.
SL182924 full complete cylindrical roller bearing application:
crane sheaves,Gear box producers,Transmission motor producers, Steel industry, Producers for construction equipment
Forest technology, Synthetic material industry, Machine tool producers, Producers of measuring devices and dividing units
Rotary table manufactures, Maritime industry, Metal forming technology, Crane sheave on the sea, Deck crane
Transmission, Planetary speed reducer, and so on.
description |
Full complete single row cylindrical roller bearing |
|
Bearing type |
INA Code SL182924 |
|
|
|
|

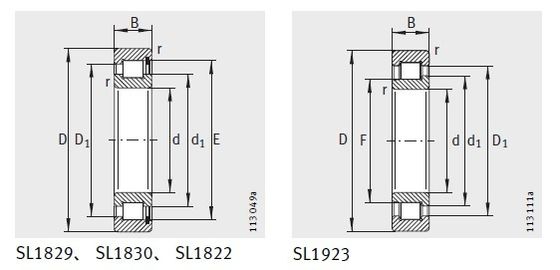

Basic dimension(mm) |
d |
120 mm |
D |
165 mm |
|
B |
27 mm |
|
r |
1.1 mm |
|
rl |
— |
|
s |
1.5 mm |
|
E |
154.3 |
|
F |
--- |
|
D1 |
149 mm |
|
d1 |
134.8mm |
|
B1 |
— |
|
B2 |
— |
|
B3 |
— |
|
Basic load rating |
Cr(KN) |
199KN |
Cor(KN) |
285 KN |
|
Limiting speed |
nG(rpm) |
2290 1/min |
|
nB(rpm) |
1570 1/min |
Weight |
|
1.8 kgs |
