cylindrical roller bearing SL182920,semi-locating bearing,100x140x24mm

Large Image : cylindrical roller bearing SL182920,semi-locating bearing,100x140x24mm

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or quality certificate
Model Number:	SL182920

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	100-1000USD
Packaging Details:	Standard export wooden case
Delivery Time:	in stock or ex-stock
Payment Terms:	T/T L/C
Supply Ability:	1000PCS/month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	Opened
Number Of Row:	Single Row

Cylindrical roller bearings SL182920,semi-locating bearing, full complement cylindrical roller set,

self-retaining roller set , the dimension: 100x140x24 mm

Full complement cylindrical roller bearings inculde single- row full complement cylindrical roller bearings and doublerow full complement cylindrical roller bearings.

SL182920 Full complement cylindrical roller bearings have no cage,full of rollers, the loading capacity is higher than bearings with cage,but the high speed performance is worse.

Single and double rows open bearings are primarily used in general mechanical equipment required lower speed and heavy loads. Double row closed bearings are generally used in wire rope pulleys of cranes.

SL182920 full complete cylindrical roller bearing application:
crane sheaves,Gear box producers,Transmission motor producers, Steel industry, Producers for construction equipment

Forest technology, Synthetic material industry, Machine tool producers, Producers of measuring devices and dividing units

Rotary table manufactures, Maritime industry, Metal forming technology, Crane sheave on the sea, Deck crane

Transmission, Planetary speed reducer, and so on.

cylindrical roller bearing SL182920,semi-locating bearing,100x140x24mm

description	Full complete single row cylindrical roller bearing
Bearing type	INA Code SL182920

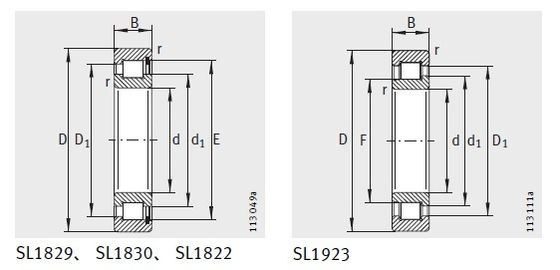

Basic dimension(mm)	d	100 mm
	D	140 mm
	B	24 mm
	r	1.1 mm
	rl	—
	s	1.5 mm
	E	130.95 mm
	F	----
	D1	125.7 mm
	d1	113.4 mm
	B1	—
	B2	—
	B3	—
Basic load rating	Cr(KN)	152KN
Basic load rating	Cor(KN)	203 KN
Limiting speed	nG(rpm)	2750 1/min
	nB(rpm)	1860 1/min
Weight		1.2 kgs
