SL182210, SL182210 Bearing, SL182210 cylindrical roller bearing

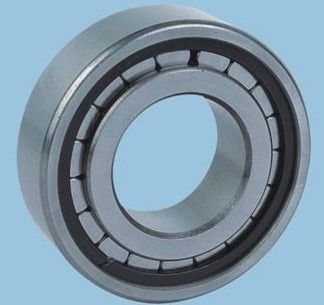

Large Image : SL182210, SL182210 Bearing, SL182210 cylindrical roller bearing

Product Details:

Place of Origin:	China
Brand Name:	JHB
Certification:	Quality certificate
Model Number:	SL182210

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	1-10000USD/negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	5-10 days
Payment Terms:	T/T,L/C
Supply Ability:	10000 pcs/month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5 P6	Seals Type:	Open
Number Of Row:	Single Row

Description: Full complete cylindrical roller bearing

Type: SL182210 full complete cylindrical roller bearing

Dimension: 50x90x23mm/Metic

ID(inner diameter)/Bore:50 mm

OD(outer diameter):90 mm

Width/Height/thickness:23mm

Quantity: One Bearing

The Number or roller: One

Lubrication: Oil or Grease

The package: standard export wooden case or carton boxes.

The Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel

The Inner ring and outer ring hardness: 58-62HRC

The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.

Basic Dimensions(mm)

Bearing Designations

basic load rating(KN)

Weight

(KGS)

Cor

SL182210

109

111

0.64

Full complement cylindrical roller bearings inculde single- row full complement cylindrical roller bearings and doublerow full complement cylindrical roller bearings.

Full complement cylindrical roller bearings have no cage,full of rollers, the loading capacity is higher than bearings with cage,but the high speed performance is worse.

Single and double rows open bearings are primarily used in general mechanical equipment required lower speed and heavy loads. Double row closed bearings are generally used in wire rope pulleys of cranes.

SL182210 bearing application:

Full-complement cylindrical roller bearings for crane sheaves

Gear box producers

Transmission motor producers

Steel industry

Producers for construction equipment

Forest technology

Synthetic material industry

Machine tool producers

Producers of measuring devices and dividing units

Rotary table manufactures

Maritime industry
