Roller bearing SL192344-TB 220x460x145mm offer sample available

Large Image : Roller bearing SL192344-TB 220x460x145mm offer sample available

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or quality certificate
Model Number:	SL192344-TB

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	100-1000USD
Packaging Details:	Standard export wooden case
Delivery Time:	in stock or ex-stock
Payment Terms:	Western Union, T/T
Supply Ability:	1000PCS/month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	Opened
Number Of Row:	Single Row	Material:	GCr15SiMn

Roller bearing SL192344-TB 220x460x145mm offer sample

Cylindrical roller bearings SL192344-TB semi-locating bearing, full complement cylindrical roller set,

the dimension: 220x460x145 mm

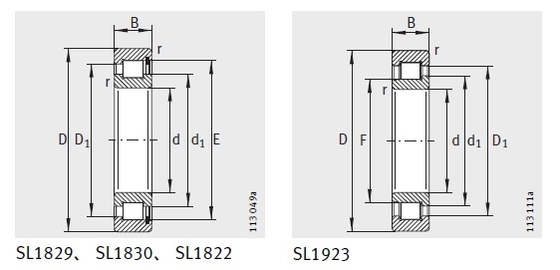

SL192344-TB bearing dimension details and rough drawing:

Roller bearing SL192344-TB 220x460x145mm offer sample available

Cylindrical roller bearing SL192344-TB 220x460x145mm data as following:

description	cylindrical roller bearing
Bearing type	SL192344-TB

Basic dimension(mm)	d	220 mm
	D	460mm
	B	145 mm
	r	5 mm
	rl	—
	s	7 mm
	E	---
	F	266.71 mm
	D1	388.3 mm
	d1	297 mm
	B1	---
	B2	—
	B3	—
Basic load rating	Cr(KN)	2650 KN
Basic load rating	Cor(KN)	3450 KN
Limiting speed	nG(rpm)	910 1/min
	nB(rpm)	530 1/min
Weight		111.2 kgs

The bearing SL192344-TB outer and inner ring material and hardness:

The Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel

The Inner ring and outer ring hardness: 58-62HRC

The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.

SL192344-TB full complete cylindrical roller bearing application:
crane sheaves,Gear box producers,Transmission motor producers, Steel industry, Producers for construction equipment

Forest technology, Synthetic material industry, Machine tool producers, Producers of measuring devices and dividing units

Rotary table manufactures, Maritime industry, Metal forming technology, Crane sheave on the sea, Deck crane

Transmission, Planetary speed reducer, and so on.

If you want to know bearing SL192344-TB more details, Please send us by e-mail or call us, We will send the more details. Thanks.
