YRT50 Rotary table bearing, turn table bearing, used in measuring instruments

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

YRT50 Rotary table bearing, turn table bearing, used in measuring instruments

China YRT50 Rotary table bearing, turn table bearing, used in measuring instruments supplier
YRT50 Rotary table bearing, turn table bearing, used in measuring instruments supplier YRT50 Rotary table bearing, turn table bearing, used in measuring instruments supplier YRT50 Rotary table bearing, turn table bearing, used in measuring instruments supplier YRT50 Rotary table bearing, turn table bearing, used in measuring instruments supplier

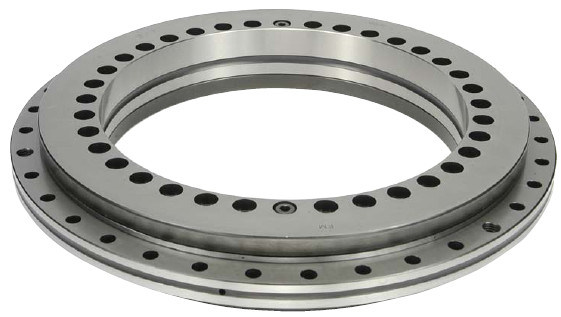

Large Image :  YRT50 Rotary table bearing, turn table bearing, used in measuring instruments

Product Details:

Place of Origin: China
Brand Name: JHB
Certification: Quality certificate
Model Number: YRT50

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 1-1000USD
Packaging Details: Carton or standard export wooden case
Delivery Time: 10-20 days
Payment Terms: T/T,L/C
Supply Ability: 1000 pcs/month
Detailed Product Description



The YRT50 Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel

The YRT50 Bearing roller material : GCr15SiMn ,GCr15, Chrome steel

The YRT50 Bearing Inner ring and outer ring hardness: 58-62HRC

The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.

The delivery time:10-20 days

The package: standard export wooden case or carton boxes.

YRT50 rotary table bearing is a kind of bearing fixed by a bidirectional thrust bearing and a centripetal-guided bearing. They can support radial loads, axial loads from both directions and tilting moments free from clearance and are particularly suitable for bearing arrangements with high requirements for running accuracy,like rotary tables, millings heads and reversible clamps chucks , milling heads, measuring instruments , test equipment as well as rotary turntable.

Due to the fixing holes in the bearing rings, the units are very easy to fit.

Items

Data

Unit

Description

YRT50

rotary table bearing



ID(inner diameter)/Bore

50

mm

OD(outer diameter)

126

mm

H:Width/Height/thickness

30

mm

d1

5.6

mm

d2

-

mm

d3

5.6

mm

H1

20

mm

H2

10

mm

J

63

mm

J1

116

mm

Ca (Axial Dynamic load rating)

56

KN

Coa (Axial Static load rating)

280

KN

Cr (Radial Dynamic load rating)

28.5

KN

Cor (Radial Static load rating)

49.5

KN

Ra (Roughness)

0.4

μm

Weight

1.6

KGS
