HSS7009-C-T-P4S-UL Angular contact Ball Bearing 45x75x16mm,70 Medium series,P4 Grade

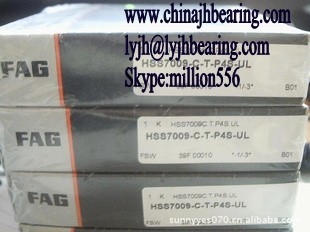

Large Image : HSS7009-C-T-P4S-UL Angular contact Ball Bearing 45x75x16mm,70 Medium series,P4 Grade

Product Details:

Place of Origin:	Germany
Brand Name:	FAG or OEM
Certification:	Quality certificate
Model Number:	HSS7009-C-T-P4S-UL

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5	Seals Type:	With Seal
Number Of Row:	Single Row

FAG bearings HSS7009-C-T-P4S-UL adjusted, in pairs or sets, contact angle α = 15°, restricted tolerances, steel ball
d: 45mm D: 75mm B: 16mm
Type:	HSS	Bearing with small balls steel balls sealed
Dimension series:	70	Medium series
Dimension(dxDxh)		45x75x16mm
Contact angle:	C	C =15° E = 25°
Cages:	T	Plastic fiber cage, outer ring guided
Precision:	P4S	P4S FAG standard, reference to DIN620, higher than P4
Bearing arrangement:	U	single bearing, universal assemble
Preload:	L	light preload

HSS7009-C-T-P4S-UL High Precision Ball Bearing HSS7009.C.T.P4S.UL Machine tool main spindle bearing

HSS7009CTP4SUL FAG High Speed Angular contact Bearing, Ball Bearing is Super precision Angular with 15 degrees contact angle and Phonetic cage, bearing is P4 quality and made in Germany

Item: HSS7009-C-T-P4S-UL FAG Ball Bearing,FAG machine tool main spindle bearing

Type: FAG Angular contact Ball Bearing

ball: steel ball

Quality: P4 Grade

Dimensions: 45mm x75mm x16mm /Metric

ID (inner diameter)/Bore: 45mm

OD (outer diameter): 75mm

Width/Height/thickness: 16mm

Size:45 x 75 x 16mm

Quantity: One Bearing

Dynamic load rating Cr: 12900 N

Static load rating Cor: 12200 N
